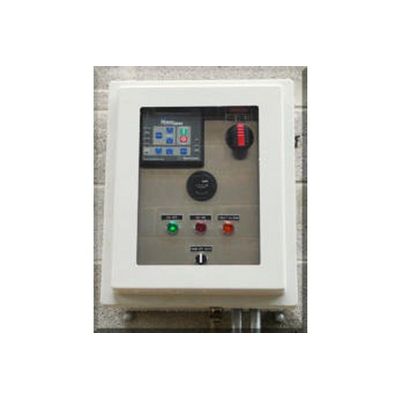

SAVVY - Model 4 -Control Panel

Components include a fused disconnect switch. CPT. motor monitor with display, starter with adjustable amperage trip heaters, run, off. alarm status lamps. HOA switch, mechanical run time hour meter, and lightning surge arrester.

Motor monitoring features include high/low voltage, voltage/current unbalance, phase loss or reversal, over/undercurrent, rapid cycling, and includes programmable time delay restarts. Optional high motor temperature PT-100/SOLO system includes PT-100 (100 ohm RTD) and SOLO temperature monitor/controller.

The RM-2000 display keypad supplies realtime data on motor amperage, voltage. % unbalance and data-logging of last four fault conditions.
