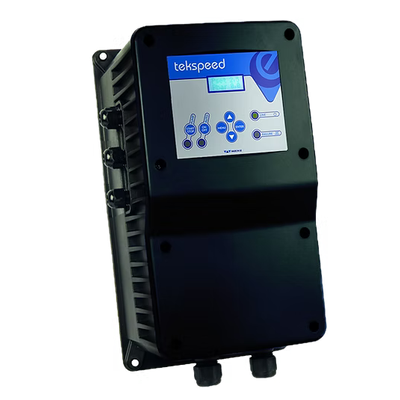

Elentek - Model Tekspeed -Control Panels with Inverter

SHARE

Frequency inverter for controlling a singlephase or three-phase pump, with wall mounting. Tekspeed is an electrical control and protection  panel for a single-phase or three-phase pump with  frequency inverter.

Most popular related searches
frequency inverter
inverter
three phase inverter
UPS system
electrical system

Available in versions with power supply:

  • 230vac single-phase input and 230vac single-phase  output;
  • Single-phase 230vac input and 230vac three-phase  output;
  • 400vac three-phase input and 400vac three-phase  output;

Tekspeed inverters can be mounted individually for  the control of a pump, or in multipump systems up to  2 MASTER-SLAVE devices with alternating logic and  contemporaneity.

Multifunctional LCD control panel
  • Indication LEDs, START-STOP, AUTOMATIC buttons
  • Configuration system
PROTECTIONS
  • Electric pump control and protection system against overcurrent.
  • Dry running protection system of the electric pump.
  • Abnormal supply voltage.
  • Short circuit between system output phases.
  • Pressure transducer error alarm.

  • Frequency inverter with PID logic
  • Multifunction LCD display for visualization: nominal pressure, voltage, current, frequency, working hours, number of starts and alarm  history log
  • Buttons for custom function selection and parameterization
  • ART function (Automatic Reset Test). When the control panel is in dry run protection, ART tries, with a programmed periodicity, to  restart the pump until the water flow is re-established
  • STC function (Smart Temperature Control): when the temperature of the electronic board exceeds 85º C automatically decreases the  frequency of revolution of the pump, decreasing the heat generation, while maintaining the flow of water
  • Automatic system recovery after power failure. The system restarts maintaining the configuration parameters
  • MASTER-SLAVE operation mode where up to 2 devices can be connected in cascade and start-up sequence alternating
  • Configurable electronic input for: external level control, assigning a second pressure setpoint, remote control start-stop
  • Input for external pressure transducer with 4-20 mA signal
  • Aluminium heat sink with forced ventilation
