Kuhse - Model KEA 3X0 - Control Systems for Emergency Power Systems / CHP

In the power range up to 6300 A, Kuhse controls and switchgears secure the emergency power supply of safety-relevant consumers, worldwide and especially in critical infrastructures. The scope of supply includes low-voltage switchgear and medium-voltage systems up to 24 kV. A high level of operational safety is ensured by compliance with these directives:

DIN EN 61439–1
Switchgear cabinet design for low-voltage switchgear systems

DIN VDE 0100–718
for emergency power supply in buildings with congregation of people

DIN VDE 0100–710
for hospitals

VDS guidelines
for the use of sprinkler systems

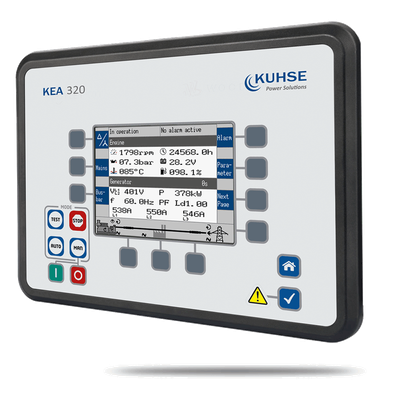

With its comprehensive range of functions, the Kuhse genset control KEA 3X0 ensures reliable plant operation of emergency power, CHP and prime power applications.

·         Internal combustion engine monitoring

·         Complete engine, generator and mains protection

·         Application for single and multi-module plants

·         Synchronization logic

·         Five communication ports:

·         Ethernet, 2xCAN (CANopen und J1939), RS-485, USB

State-of-the-art successor of KEA Series 1XX / 2XX supports all common standard requirements for emergency power applications
Applicable for new installations and for the modernization of existing emergency power applications
Available as single unit for front or back panel mounting as well as functionally tested complete control cabinet with all control components
Load distribution to up to 32 gensets with a single mains supply in island or mains parallel operation possible
Combines control and protection of engines and generators with advanced P2P paralleling capability in a rugged, user-friendly complete package
Integrated programmable logic functions for exceptional application flexibility eliminate the need for an additional PLC in most cases
Integration of regenerative energy generators, such as photovoltaic systems and / or storage solutions possible
