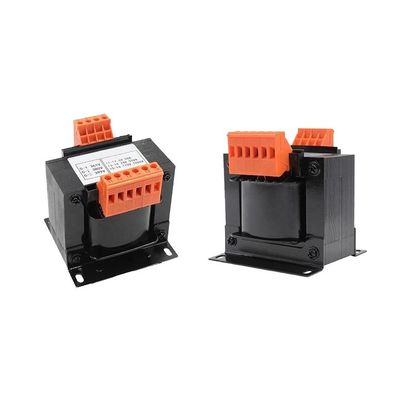

ATO - Model T-BK - Control Transformers
Single phase control transformer from 500 VA to 10 kVA power rating can be provided in ATO. AC primary supply from 110-480 volt, can work continuously for a long time under rated load. The advantages that customers can receive from our control transformer design are numerous. The control transformer wiring ensures that the voltage is always stable, allowing for quick and efficient current conversion.
- Product Model: ATO-T-BK
- Phase: Single phase
- Winding Material: Enameled copper wire or enameled aluminum wire
- Capacity: 500 VA to 10 kVA (customized)
- Primary Voltage (VAC): 0 to 690V (customized)
- Secondary Voltage (VAC): 0 to 690V (customized)
- Frequency: 50 / 60Hz
- Insulation Level: F / H
- Cooling Method: Natural or air cooling
- Impedance Voltage: about 6%
- Total Losses: 0.1
Control transformers, popularly known as industrial control transformers. The control transformer is a multi-tap transformer that has multiple taps on either the primary winding or the secondary winding. ATO offers single phase control transformer from 500 VA to 10 kVA power rating, AC primary supply from 110-480 volt, multiple secondary voltages applicable to AC 50Hz or 60Hz circuits. Stability and quality are two important benefits that a customer can gain by choosing control transformers. If you are looking for a control power transformer that is efficient and reliable, ATO can provide you with the solution. We have been designing and manufacturing custom control voltage transformers for many years.
Control Transformer Customization Notices:
- Determine the basic type, required specifications, capacity and quantity of the control transformer.
- Primary and secondary voltages of control transformer.
- Provides capacity allocation for each output voltage. (Estimate the total capacity of the good appliance, and leave a margin, so as not to burn the transformer at the instantaneous start)
- Provide the shape of the control transformer and the required mounting dimensions.
- Pure copper core wire. We adopt all copper coil, so that the control transformer conductivity is excellent, low resistivity. At the same time, low temperature rise can also greatly improve the reliability of product performance. Also, aluminum can be provided.
- Metal bracket. The metal bracket can connect the terminal and skeleton together to improve the protection level of the control transformer and prevent accidental contact with the circuit.
- Silicon steel sheet. The silicon steel sheet is used as the iron core of the transformer, because the silicon steel itself is a magnetic material with strong magnetic conductivity. In the energizing coil, it can produce a large magnetic induction intensity, so that the volume of the transformer can be reduced.
- Cold-pressed terminal. Cold-pressed terminal can be connected into wires without welding or screws. The wiring mode can improve the density of the line.
- Keep the transformer clean and free of debris. Regularly inspect the transformer for any signs of dust, dirt, or debris. Use a soft brush or cloth to clean it.
- Check the control transformer for loose connections. Make sure all connections are tight and secure. Loose connections can cause overheating and damage to the step up and step down transformer.
- Monitor the transformer for any signs of overheating. Overheating can cause the transformer to fail. Check the temperature regularly and make sure it`s within the specified range.
- Inspect the control power transformer for any signs of damage. Look for cracks, dents, or any other signs of physical damage. If you find any, have it repaired or replaced immediately.
- Keep the area around the industrial control transformer clean and free of clutter. Avoid placing any objects near the transformer that could obstruct airflow or cause damage.
- Schedule regular maintenance checks. Have a qualified electrician perform regular maintenance checks on the transformer to ensure it`s working properly and efficiently.
