eze System - Model mkII -Controller
Fromeze System, Inc.

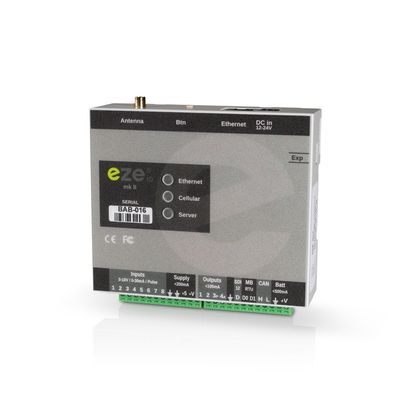

The ezeio® mkII Controller, manufactured by eze System, is an advanced generation logic controller, designed primarily for industrial and commercial automation applications. It integrates secure input/output functionalities and features a Modbus/TCP server and client capabilities via TP 10/100 Ethernet. This controller supports communication through CANbus and includes an SDI-12 port for versatile interfacing with various protocols and devices. With a robust, non-volatile onboard log buffer memory and a comprehensive suite of scheduling and calendar functionalities, the mkII Controller ensures reliable operation and data retention. It is tailored to meet various application needs with its additional features, adherence to certifications, and a convenient power supply design. The mkII also serves as a gateway, providing seamless integration in complex systems.Most popular related searches
Hardware models
- LTE-CAT-M1 (5G IoT) + Ethernet (EM2020)
- 2G/3G + Ethernet (EM2010)
Security
- Secure OTA sync & updates
- Fully encrypted, PKI & 128bit encryption,
Inputs/outputs
- 8 general purpose inputs (discrete, on pluggable terminal, fully configurable)
- 0-10VDC (2.5mV resolution, >65kΩ input impedance)
- 0-30mA (12.5uA resolution, 200Ω internal shunt)
- 0-1MΩ resistance (<2% accuracy in the range 2k – 700kΩ)
- Thermistor (100kΩ/10kΩ/2kΩ types, internal excitation)
- Dry switch (on/off, optional internal excitation)
- Pulse (S0 or KYZ, max. 400Hz, optional internal excitation, monitor pulse rate and/or pulse count/ frequency/interval)
- Electronic configuration of pull-up / shunt
- Protected with PTC
- Internal 0.5% reference
- 4 general purpose outputs (discrete, on pluggable terminal, fully configurable)Output
- 1/2 - digital (on/off), sourcing max. 200mA each
- Output 3 - PWM output or on/off output (sourcing max. 200mA)
- Output 4 - analog, 0-10V, 0.1V resolution (sourcing up to 10mA)
- Supports plug-in sidecar ezeio I/O expansion (third-party I/O can be added via the communication ports)
- Supports up to 90 individual fields
- Modbus/RTU Master port (RS485)
- Up to 32 devices
- 1200 to 115200 bps
Modbus/TCP server & client (TP 10/100 Ethernet)
- Configurable port numbers (standard 502)
CANbus
- Supports J1939
- Optionally used for I/O expansion
SDI-12 port
- Supports v1.4
- Optional support for serial NMEA 0183 (GPS)
Other hardware features
- SMA antenna connector (cellular)
- +5V DC regulated output, max. 200mA
- PTC fused DC output, max. 200mA for sensors
- On-board RTC (24h supercap backup)
- 3 dual-color indicator LEDs
- Pushbutton for controlled start-up/reset
Power supply
- 12-24V DC
- Standard 5.5/2.1mm plug in barrel connector
- Optionally powered through screw terminal
- 0.8W self-draw (average), 3W peak (short sub-second bursts)
- Hibernation mode, <0.06W (average)
Dimension & weight
- W: 108mm/4.3in, H: 90mm/3.6in (excl. connectors), D: 33mm/1.3in
- Allow 50mm top & bottom for connectors & wiring
- 35mm DIN rail or screw mounted
- Weight: 0.150kg/5.3oz
On-board log buffer memory (non-volatile)
- Full system log data (>50 days @ 10 minutes logging)
- Large dynamic log data buffer, i.e.
- 10 fields, >30 days @ 10 seconds
- 50 fields, >30 days @ 1 minute
- >6,000 events/alarms/transactions
- All logs auto-uploaded to eze.io backend
Capabilities
- Up to 90 monitored fields
- Up to 300 alarms for local events, SMS, email, voice calls etc.
- Geo-fence features with GPS support
- Up to 2000 card/PIN codes
Schedules & Calendar
- 10-year calendar
- 30 daily schedules
Additional features
- Full remote configuration & management
- Live data access
- Automatic data synchronization with eze.io cloud
- Expression engine for field math & alarms
- Remote firmware upgrade
- Standard & custom driver support for industrial devices
- Powerful scripting support
Others
- Operating Temperature-20 to 65°C
- Operating Humidity5 to 95% (non-condensing)
- IP ratingIP40 (use indoors/in electrical enclosure)
Certifications
- FCC Part 15 B 15.017 & 15.109
- AS/NZS CISPR 32 (2015)
- EN 55032 (2012) +AC1
- EN 61000-3-2 (2014)
- EN 61000-3-3 (2013)
- EN 55024 (2019) +A1
- VCCI-CISPR 32:2016 Class B
- Verizon OD
- CE
- RoHS 3
