LLC Bioprom Kharkiv

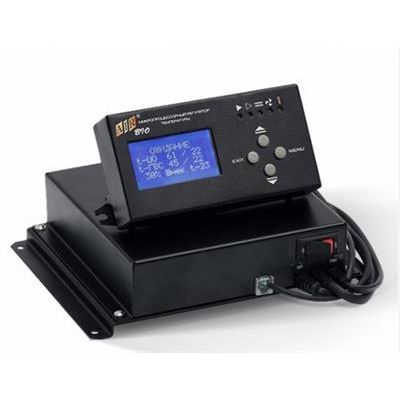

Air Bio - Model 3 290 грн - Controller
Functional boiler control unit with automatic feed of solid fuel. Is perfect for managing burner with screw (auger) feed. Power unit and the display-control unit are made in some cases for a comfortable installation and management. Guarantee 1,5 year.
Most popular related searches
central heating
boiler controller
boiler control
combustion chamber
pellet burner
boiler pump
heat pump
burner
combustion controller
boiler unit
Controller operates
- Fuel supply gear
- Central heating pump
- Hot water supply pump
- Fan of air supply to the combustion chamber
Controller controls
- Central heating heat carrier temperature
- Hot water supply temperature
- Fuel supply gear temperature
- Controller operates the pellet burner of retort type.
- Power supply voltage V/Hz 230/50
- Max power input Watt 4
- External temperature operating range °С 10-50
- Circulating pump max power Watt 500
- Boiler pump output max power Watt 1000
- Fan max power Watt 500
- Fuel supply gear max power Watt 300
- Temperature measurement range °С 0-95
- Temperature measurement accuracy °С 2
- Temperature adjustment range °С 45-95
- Resistance temperature sensor °С 55-125
- Mass kg 2,7
- Fusing element А 10
