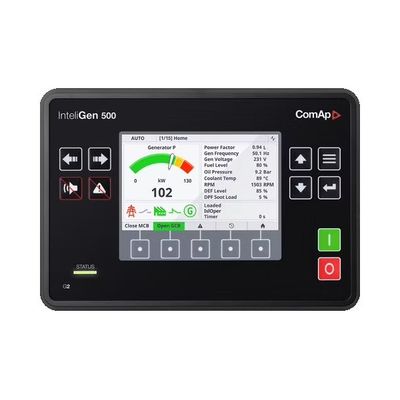

InteliGen - Model 500 G2 - Controller for Multiple Gen-Set Applications

This product is a direct successor of our InteliGen 500, InteliGen NT GC and InteliGen NTC GC controllers.

• Stage V & Tier4Final
• Cybersecurity by design
• Multi ECU support
• Start-up synchronisation
• Forced values
• Signal sharing across units*
• Dynamic spinning reserve
• Controller redundancy*

The InteliGen 500 G2 offers:

• Support for installations with the option for cooperation with up to 32 gen-sets/mains/tie controllers
• Keeping your business and data as safe as possible, meeting the ISA 62443 level 2 - level 3 security requirements
• StageV and Tier4Final-ready by default
• Multi ECU (Electronic Control Unit) enabling communication with more independent J1939 devices such as Engine Control Units, AVR modules, Breakers, etc.
• Start-up synchronisation to minimise the paralleling start sequence time and get the gen-set system up and running with minimum possible delay
• Dynamic spinning reserve helping to deliver maximum amount of available energy from photovoltaics
• Faster and cost-effective operations with signal sharing over a CAN bus across a group of control units*
• Controller redundancy minimising solution downtime and ensuring the power isn’t compromised*
• Built-in PLC interpreter with the use of ComAp`s free PLC Editor
• AirGate 2.0 for easy connection to your equipment remotely, without worrying about your asset’s IP address
• User-defined protections and setpoints on top of default parameters
• Remote control and monitoring of your gen-set operations with WebSupervisor, our cloud-based fleet management tool
• Secure user management
• Compatible load/Var sharing and power management with other ComAp solutions
• Droop regulation allowing load sharing and Var sharing when inter-controller’s communication is lost
• Plug-in modules to easily extend the functionality of the product
• Possibility to have a mains application in a gen-set controller with firmware upload functions
• One hardware for more applications, enabling an easy switch between MINT and SPtM (or MCB and MGCB)
• Optional geofencing feature helping with efficient unit tracking and theft prevention**
• Increased site efficiency and reduced operational costs through effective power management
• Event-based history for fast and easy troubleshooting
• Peak shaving for limiting the import from the mains (e.g., due to higher prices)
• Load shedding ensuring the most important loads are running even when there is a lack of power
• Clear visualisation and overview of all important information on the built-in colour display

* Features available with a software key.

** Feature available with a CM2-4G-GPS plug-in card.
