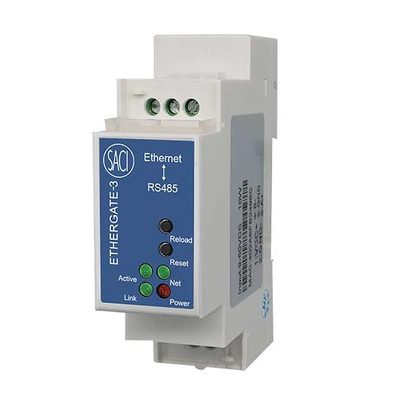

SACI - Model ETHERGATE 3 -Converter
The ETHERGATE 3 converter is a gateway for connecting an RS-485 network to an Ethernet network.
Most popular related searches
ELECTRICAL FEATURES
- Input voltage: Option AC: 100 ~ 240 V @50~60Hz // Option DC: 9 ~ 50 V
- Burden: ~ 100 mA
- Power: < 400 mW
SYSTEM INFORMATION
- Processor/Frequency: Cortex-M3/96MHz
- Flash / SDRAM: 2 MB /128 KB
- Operating System: FreeRTOS
ETHERNET PORT
- Port Number: 1
- Interface Standard: 10/100 Base-T Auto-Negotiation
- Transformer: Integrated
- Network Protocol: IP, TCP, UDP, DHCP, DNS, ARP, AutoIP, ICMP, Telnet, NTP, Modbus TCP, HTTP Server/ Client
- Security Protocol: AES 128Bit, DES3
RS485 SERIAL PORT
- Port Number: 1
- Baud rate: 600 bps ~ 460800 bps
- Data bits: 5, 6, 7, 8
- Stop bits: 1, 2
- Parity bit: none – even – odd
- Flow control : No Flow Control // Software Xon/ Xoff flow control
SOFTWARE
- Web Pages: Http Web Configuration
- Configuration: Web / CLI / XML import/ Telnet / IOTService PC Software / UART Fast Config
- Firmware Upgrade: Webpage / IOTService Tools
OTHER FEATURES
- Size: 97,6 x 64,95 x 27, 50mm
- Operating temperature: – 40 / + 85°C
- Storage temperature: – 45 / + 105°C
- Relative humidity: 5 ~ 95% No condensation
