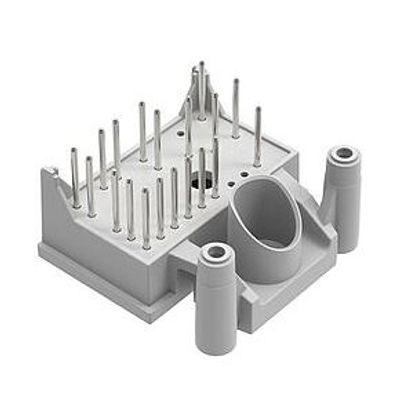

Vincotech flowPIM - Model 0B- 10-0B06PRA004RC-L022C09 -Converter

Topology: PIM (CIB)

• Open Emitter configuration
• Temperature sensor
• Single-phase Converter+Inverter

Chip technology (main switch): IGBT RC

• Optimised collector emitter saturation voltage and forward voltage for low conduction losses
• Reverse conductive IGBT technology
• Smooth switching performance leading to low EMI levels
• Base isolation (e.g. ceramic): Al2O3
• Electrical interconnection: Solder pin

• Module housing: flow 0B
• Mechanical connection to the PCB: 2 towers
• Footprint: 36.6 mm x 34.9 mm
• Height: 17 mm
• Single screw heat sink mounting
• Ultra-compact design
• Thermo-mechanical push-and-pull force relief
