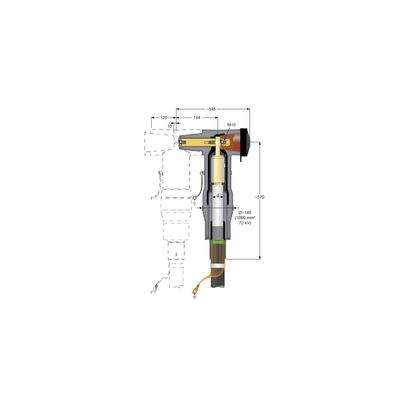

NKT - Model CC 72 -Coupling Connector

The coupling connector CC 72 is suitable for XLPE and EPR insulated cables with Al or Cu conductors.

Most popular related searches

Max. cross section: 1200 mm²
Core insulations: 32 - 74 mm
Max. dimensions (Ø x L): 145 x 270 x 610 (mm)
Max. weight: 13 kg
Operating voltage Ur: 72 kV
Product type: Coupler
DIN EN 50299 norms: EN 50673, IEC 60840
Optional kits: Usable for on- and offshore application, Integrated capacitive measuring point

Product Information
