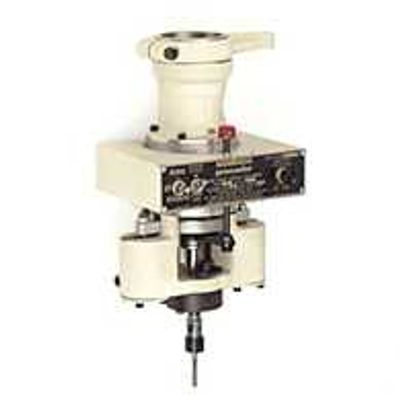

CreatechModel 1-AL -Push Button Lead Screw Tappers

SHARE

Gauge perfect parts every time – reduce inspection – cut fixed costs, Completely automatic – Electrically controlled, air operated with push button or foot controlled operation, Built-In Stop provides repeatability within 1/3 turn, Fiction clutch gives smooth, “cushioned” action and tap protection, Precision thread ground lead screw assemblies are changed in “seconds”, Up to 3600 cycles per hour, Max recommended speed is 2000 RPM, Built-in adjustable 3/4″ Stroke.

Most popular related searches

Supplied with power line, air line, foot switch, set of (2) wrenches, quill clamping cover, Shank and drive adapter as required.

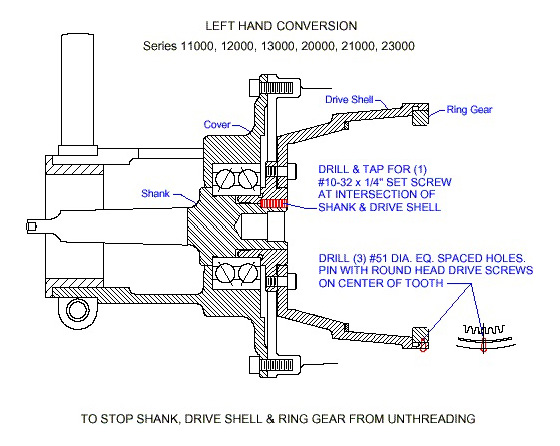

For Left-Hand operation, the unit must be modified. Not for use in inverted position. To include left hand modification with new tapping attachment, include part #57550. Note: Lead Screw Style Tappers must also use left hand lead screws.
