Createch - Model 3-AL -Heavy Duty Lead Screw Tappers
Gauge perfect parts every time – reduce inspection – cut fixed costs, Completely automatic – various cycles operated by push button or foot switch, Air controlled friction clutch provides tap protection and depth repeatability with 1/3 turn, May be used to drive multiple attachments, Up to 1800 cycles per hour, Max recommended speed is 1200 RPM, Built-in adjustable 2 1/4" Stroke.
Most popular related searches
Supplied with power line, air line, foot switch, wrenches, quill clamping cover, shank and drive adapter as required.

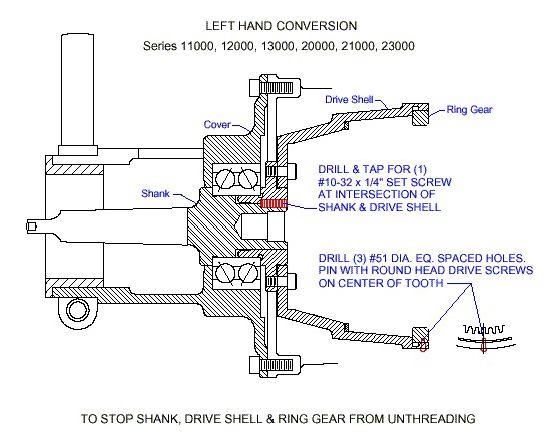

For Left-Hand operation, the unit must be modified. Not for use in inverted position. To include left hand modification with new tapping attachment, include part #57550. Note: Lead Screw Style Tappers must also use left hand lead screws.
