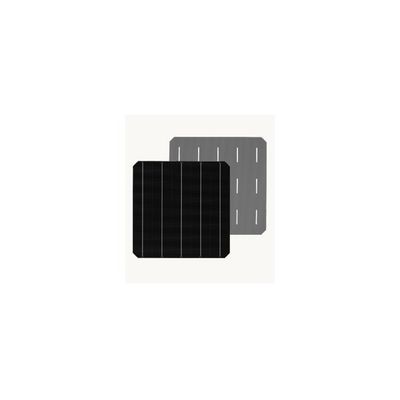

Ming Hwei EnergyModel M4 Mono PERC 5BB -Crystalline Solar Cell

SHARE

Uniform Color. Low breakage rate. High conversion efficiencies resulting. Superior output power in any condition. 100% inspected performance of products. All products conform to the regulation of RoHS. Excellent mechanical performance proven by all customers. Regularly monitor product performance and soldering properties. Less power deviation of modules ensured by precise matching of cells, sorted 100% in narrow current classes at constant test voltage.

Most popular related searches

Dimension
161.7 mm x 161.7 mm ± 0.25 mm

Thickness
180 μm ± 20 μm

FrontBlue silicon nitride anti-reflection coatings
5 silver bus-bars (0.7 ± 0.1 mm),122 fingers

Back
Full-Surface aluminum BSF, 5x3 soldering pads
1.7 ± 0.1 mm wide Silver / Aluminum bus-bar

  • 100% PID Resistance.
  • Precision cell efficiency sorting procedures.
  • Reverse current and shunt resistance screening.
  • Stringent criteria for color uniformity and appearance.
  • 100% in-line inspection for optical
