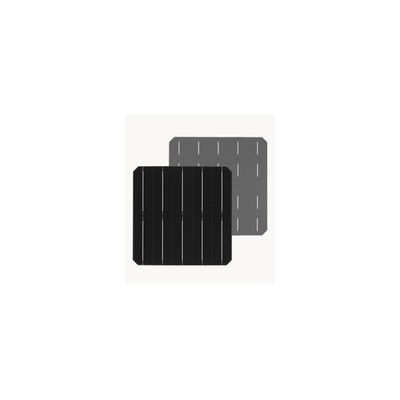

Ming Hwei Energy - Model M2 Mono PERC 5BB -Crystalline Solar Cell
FromMing Hwei Energy
Uniform Color. Low breakage rate. High conversion efficiencies resulting. Superior output power in any condition. 100% inspected performance of products. All products conform to the regulation of RoHS. Excellent mechanical performance proven by all customers. Regularly monitor product performance and soldering properties. Less power deviation of modules ensured by precise matching of cells, sorted 100% in narrow current classes at constant test voltage.
Most popular related searches
Dimension
158.75 mm x 158.75 mm ± 0.25 mm
Thickness
180 μm ± 20 μm
Front
Blue silicon nitride anti-reflection coatings
5 silver bus-bars (0.7 ± 0.1 mm),110 fingers
Back
Full-Surface aluminum BSF, 5x4 soldering pads
1.7 ± 0.1 mm wide Silver / Aluminum bus-bar
- 100% PID Resistance.
- Precision cell efficiency sorting procedures.
- Reverse current and shunt resistance screening.
- Stringent criteria for color uniformity and appearance.
- 100% in-line inspection for optical.
