NovaLynx - Model 200-WS-23 - Current Loop Wind Sensor
The 200-WS-23 Current Loop Wind Sensor monitors wind speed and direction. The electronics converts the raw signals from the wind sensors to proportional 4 to 20 mA current loop values for use by process control or monitoring systems. It acts like a variable resistance that draws 4-20 mA when powered with 8 to 30 Vdc. No external power is required because the encoding electronics for wind speed and for wind direction are isolated and powered from their respective 2-wire current loops.Two versions are offered. The 200-WS-23 measures both wind speed and direction, while the 200-WS-23S measures wind speed only. Both systems consist of two subassemblies, a wind sensor and a signal conditioning electronics package in a NEMA housing. Although it has only one PC board, it contains two completely independent circuits, one for wind speed and one for wind direction.

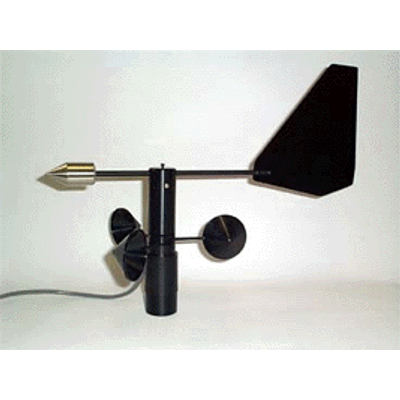

The wind sensor includes a three cup anemometer and wind vane. The sensor is ruggedly constructed of UV resistant ABS plastic and anodized aluminum parts, and includes 40` of cable. Additional cable lengths can be supplied. The electronics package is supplied in a gasketed wall mount NEMA enclosure.
Specifications
Wind Speed
Speed threshold: 0.8 mph
Transducer type: Reed switch
Speed constant: 1.25 mph = 1 pps
Measurement range: 0-100 mph (standard)
Optional: 0-50 m/s, 0-100 knots, 0-200 km/hr
Accuracy: 1 mph or ± 3%
Wind Direction
Azimuth accuracy: ± 3°
Bearings: Bushing
Potentiometer gap: 5°
Threshold: 1.2 mph
Measurement range: 0-360°
Current Loop
Accuracy: ± 1% full scale
Output span: 4 to 20 mA, proportioned to 0-100 mph
Output span: 4 to 20 mA, proportioned to 0-360°
Supply voltage range: 8 to 30 Vdc
2-wire loop interface: Screw terminal block
Interface power: Derived from current loop
Circuit time constant: 1 sec
Temperature range: -40° to 104° F (-40° to 40° C)
Dimensions
Wind speed and direction: 12` H x 10` W
Wind speed only: 4.5` H x 8.5` W
Electronics enclosure size: 4.7` H x 4.7` W x 2.25` D
Sensor cable length: 40`
Weight/Shipping: 4 lbs/6 lbs
