MGM - Model Arrow -Cutting Machine

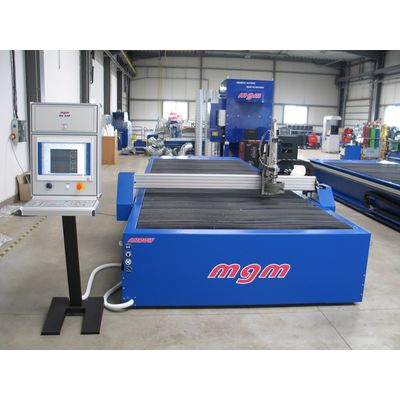

The high quality standard of the machines made by company MGM, spol. S r.o. With very high ratio price/performance and price/utility. Is suited to support of plasma or laser technology. Compact gantry design with guiding rails integrated into the suction table. Gantry is of the lightweight alloys and with reduced headroom to minimize the inertia forces effect. Double-sided drives in the X axis. Excellent dynamic and static characteristics. Precise linear guidance in X and Y axes in maintenance-free and lubrication-free design. Planetary gears pinion/toothed rack, backlash-free, maintenance-free and lubrication-free. High positioning speeds (up to 40 m/min). High movement accuracy during cutting and positioning.
Torch suspensions - axe Z
- for plasma technology
- pneumatic with mechanical height control of torch/material (for thin plates)
- electric, programmable, with a combination of mechanical and electronic height control of torch/material
- for laser technology
- electric, with contactless optical focus position control system given to the material, integrated into the laser head
Drives in axes X and Y
- precise AC servo-drives controlled by frequency amplifier
- maintenance-free solution
Control system
- developed and made by MGM
- software of the control system also developed by MGM
- easy operating thanks to OS MS-Windows
- 15“ LCD Touch-screen Display
- for devices with basic equipment until processes with automated parameters transmission
Technology
- plasma cutting
- using simple air-plasma sources
- using fine quality plasma sources equipped with torches with more than single gas circuit
- using hi definition plasma sources equipped with manual or automatic gas consoles for precise supply of the gases for plasma torch
- of mild steel, low- and high-alloyed steels and non-ferrous metals
- laser cutting
- using sources with the Fiber laser technology
Programming software
- SAPSproW
- Lantek
- with HW key for individual or net operating
