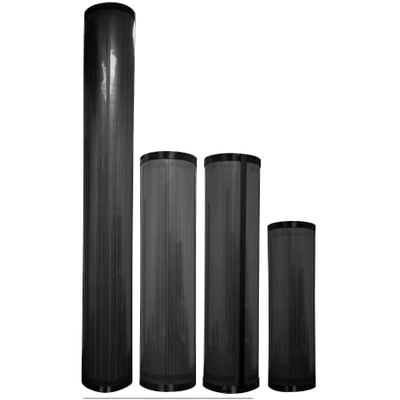

Cylindric Solar Panel
The most beautiful solar panel for solar street light applications that can be adapted to poles of any diameter and size.
Universal Applications
Easy Pole can be used with any type of pole and is designed in order to allow application without any previous dismantling.
Modular Installation
This solar cylinder module is based on modular design concept for easy installation and disassembly.
Easy to Clean
Less dust will fall on surface than regular solar panels. Workers can clean it easily from the ground with a long handle brush.
Custom Made Product
The product can be customized in power, dimension, color and efficiency in order to meet any specific requirement or need.
Seven-Layer Design
Fly Solartech patented design is unrivalled by the conventional five-layer panels, also thanks to the F-ETFE2 scratch-resistant polymer with light orientation technology.
Full day Charging
6 slim solar panels are fixed on a hexagon frame.
This ensures that at least 50% of the whole surface will face the sun during all day.
Strong Wind & Snow Resistance
The cylindrical design reduces the wind resistance area, and each module is directly fastened to the pole by 12 screws for better wind resistance.
Lightweight and Ultrathin
Nanoscale silicon film means that the panel is less than 1/8th the weight of a traditional panel, with a thickness of only
1.5mm.
Fly Solartech Solutions Srl has developed a lightweight cylindrical solar panel that can be integrated onto PV-powered street lighting lamp posts of different sizes.The Fly Solartech module is encapsulated in thermoformable plastic technical polymers and relies on a black backsheet. It is available in three versions with a power output of 100, 120, and 240 W.
This new product allows reconciling the high efficiency of crystalline cells at 23.4% with a rounded shape which, thanks to the revolutionary production system developed by FLY Solartech, guarantees to be able to form and shape the panel in its cylindrical shape, perfect for lighting applications both public and private solar systems while keeping the cells intact.
The thermoformable production system allow us to shape the product in its cylindrical shape without incurring internal micro-cracking and maintaining the range of curvature that the cells themselves are is able to absorb.
The product is divided into two halves which are assembled together to embrace the post. Each half is composed of two strings of cells that are not interconnected with each other but each with its own junction box.This configuration allows deploying more cylindrical modules around the same post and connecting them in series and maximizing their output through multi-channel maximum power point tracking (MPPT).
Each cylinder is incorporated in two fixing collars placed on the external ends of the panel and two lateral guides that allow the perfect closure of the two halves. Its cylindrical nature allows it to withstand strong winds as well as its vertical application allows limiting to a minimum the deposits of dirt and sand as well as snow accumulation. The product can also be made with an anti-glare protective coating to allow its application on roads and highways where the use of an anti-reflection product is necessary.
The panels that are now used for public lighting applications are basically standard panels installed on the pole head. This does not allow them to be installed on existing poles because they need lamps and poles that allow them to be housed at the top of the pole. Moreover, they have higher cleaning costs, and being in a horizontal position tens of meters high, they become easy support for birds and their excretions as they are covered by snow during winter.
