Ceramix - Cylindrical Cell Battery Module

SHARE

Lithium battery module is composed of a certain number of single cells in series and parallel. Battery Pack is formed by adding BMS, output and input terminals, battery pack case and other components on the basis of the module. The battery module is suitable for pack integrators with a certain lithium battery assembly capability to design and assemble a battery pack or system that can be directly used.

Most popular related searches
battery module
lithium battery
lithium ion battery system
battery production
battery system
battery design
energy storage
battery capacity
battery terminals
lightning surge
  • Measurement-While-Drilling (MWD)
  • Logging-While-Drilling (LWD)
  • Safety design for power surges, including lightning strikes
  • Lithion. Powering Innovation.
  • Wide temperature range operation
  • High current discharge

Cylindrical cell Module production process is mature, Module cost is low, battery product yield and consistency of cells is high; Due to the large heat dissipation area of cylindrical cell module, its heat dissipation performance is better than prismatic cell module. The cylindrical cell is convenient for the combination of various forms and is suitable for the full layout of some space design. Cylindrical cells, however, are usually made of steel, which are heavy and have relatively low energy density.

  • Low cost of single battery cell
  • Small capacity battery pack production and design process is mature
  • Single cell has good mechanical properties and can withstand greater external force.
  • According to the size, the cylindrical cell mainly has 14500,18650,21700,26650 and 32700 specifications.
Innovative Lithium Battery System

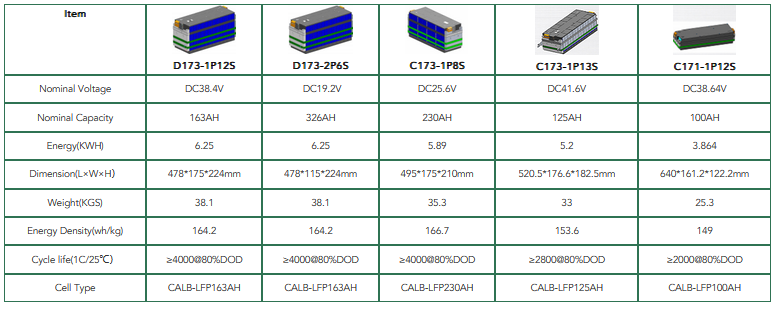

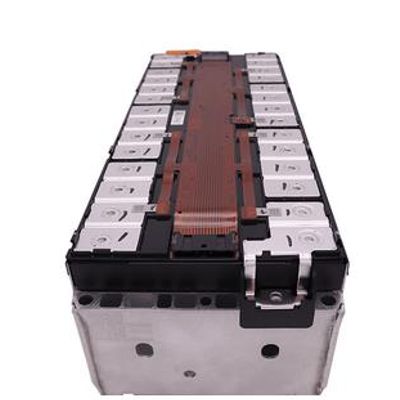

The standard common modules are shown in the following table, which uses Prismatic LFP cell mostly for energy storage and passenger car power. If you need custom battery module, however special it is,please contact us by email. CeramiX can provide standardized lithium battery modules for customers with lithium battery pack design and assembly capacity. Standardized lithium battery modules have advantages of lower cost, mature application and higher safety compared with customized modules due to large production volume, wide application range and mature component supply chain. The Conductive bar of our battery module was laser welded. The wiring harness plate fixes the connecting wiring harness between the cells. The patented FPC component (a kind of flexible circuit board) is assembled to collect the temperature and voltage parameters of the module when it is working, which is convenient for assembling into battery pack and BMS management. The side plate and end plate of the module are welded by laser, which is firm and safe.
