Ceramix - Model LFP -Cylindrical cells
The type of Cylindrical LFP cell is usually a battery factory meaning a number, which is used as a batch number tracking, but the specifications, most general purpose batteries produced by different manufacturers are the same, the difference is the size of the battery capacity. Cylindrical LFP cells specifications are composed of numbers and characters. The basic specification data for the battery surface are nominal voltage 3.2V, capacity and number of representative specifications.

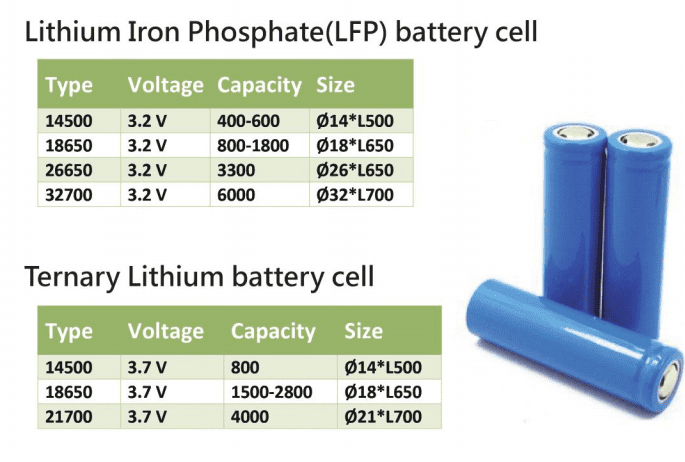

- Type14430:3.2V,300-400mah
- Type 18500:3.2V,1000mah
- Type 18650:3.2V,1500-1800mah
- Type 26700:3.2V,4000mah
- Type 32700:3.2V,5500-6500mah
- Type 32800:3.2V,8000mah
Cylindrical cell is the earliest commercial mass production form of lithium battery, so its production process is the most mature, the production cost is the lowest, mass production of single cell consistency is high, small internal resistance, but because of the small capacity of the single cell, large capacity battery system is the most difficult process, also lead to the highest battery pack cost. The working effect is poor under uneven temperature conditions.Moreover, there is little room to increase energy density. These features make it more suitable for small-capacity battery systems, such as outdoor portable power supplies, power tools,Solar street lights, 3C electronics,E-bike power, etc.
- Low cost of single battery cell
- Small capacity battery pack production and design process is mature
- Single cell has good mechanical properties and can withstand greater external force.
- According to the size, the cylindrical cell mainly has 14500,18650,21700,26650 and 32700 specifications.
The cylindrical cell customized by CeramiX joint strategic cooperation cell factory is provided by Dr. Chen Yufu, one of the founders of CeramiX exclusive battery formula, mainly in the cathode and anode materials and electrolyte innovation, the cathode material added special metal elements, making safety more secure, higher charge and discharge rate. Unique electrolyte can ensure better low temperature performance of the battery.Our cylindrical cell has the characteristics of low price, high safety, high consistency of cell, Constant discharge rate can reach 3C and so on. It is suitable for UPS, solar street lamp power supply, low speed vehicle power supply, outdoor power supply, communication base station standby power supply and so on.
