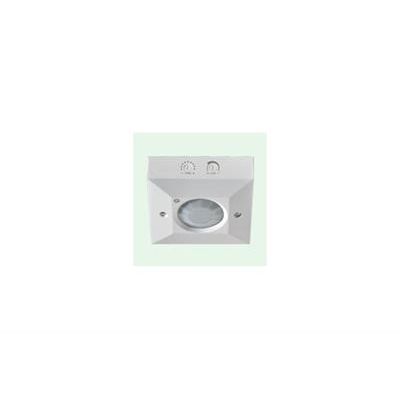

DANLERS - Model CESFA PIR -Ceiling Surface-mounted PIR Absence Switch
FromDANLERS Limited
Ceiling surface-mounted PIR absence switch. When someone enters a room the lights are turned on using a wall switch. When the occupant leaves the room or area of detection the CESFA PIR automatically switches the lights off after a pre-selected time. The override OFF function allows the occupant to turn the lights off from the wall switch (while the CESFA PIR is in the ON state) without waiting for the pre-selected time lag to time out. The lights can be switched back ON by operating the wall switch in the usual way.
Most popular related searches
Ideal for meeting rooms, bedrooms, hotel rooms, student and military accommodation, classrooms etc.
Can be mounted on a square pattress box, order code: PABO.
- Detection Zone: 360°
- Time lag range: 10 seconds to 40 minutes in 9 steps
- Photocell range: 30 to 1000 lux (adjustable) plus infinite lux / photocell override
- Loading:
- Up to 6 amps (1500W) of resistive loads.
- Up to 6 amps (1500W) of fluorescent loads.
- Up to 3 amps (750W) of electronic and wire wound transformer loads.
- Up to 2 amps (500W) of CFL, 2D lamps, LED Drivers and LED lamps and fittings.
- Up to 1 amp (250W) of fans.
- Minimum Load: 2W resistive, suitable for most energy saving lamps, LED’s, contactors and emergency fittings
- Dimensions: 86 x 86 x 25mm.
- Requires back box depth 16mm
