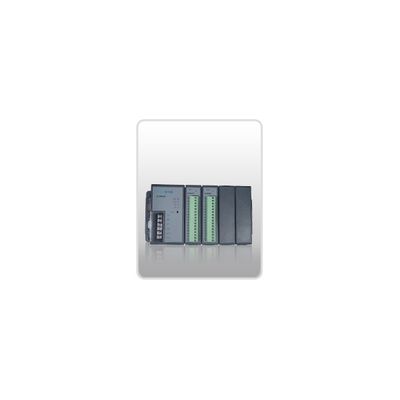

Envitech EnviDAQ - Model 9410 - Data Acquisition I/O Module
4-Slot Sub-Controller Based On RS-485 (Compatible with ADAM 5000/485). Main Features: Easy to install and networking RS-485 communication. Each system has 4 slot, Max can support 128 I/O point. Support various software including Windows DLL driver, OCX driver, OPC server and HMI/SCAPA software driver. With surge protection, avoid system to be damaged by dangerous voltage and power transients. Can use one R-8510 repeater to expand network, each system can have Max 256 R-9000 unit, max transmit distance can reach 10km.
EnviDAQ-9410 , a trademark of Envitech Europe,use EIA RS-485 communication protocol. This protocol is the standard which has been widely used in industrial field balancing, two-way transmit. RS-485 has the advantage of further transmitting distance, higher transmitting speed, very suitable for industrial application.
- CPU 16 Micro processor
- I/O model capacity: 4
- Built-in watchdog
- Power consumption: 1.0W
- Network Communication: RS-232or RS 485(2-wire) to mainframe
- Max communicate distance: 4000 feet(1.2km)
- Command format: ASCII command/response protocol
