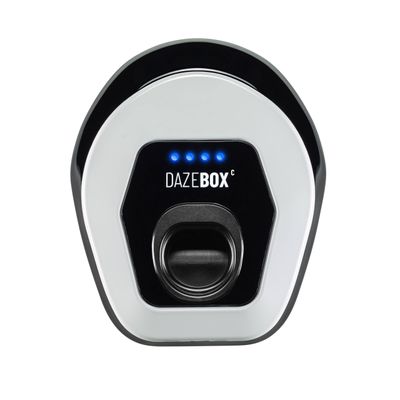

Dazebox C
The DazeBox home wallbox allows you to charge your vehicle at the maximum speed without exceeding the power limits thanks to its Dynamic Power Management system. Morover, RCM and cable are integrated to provide the most simple and comfortable installing and charging experience. Completely designed and produced in Italy, DazeBox is available in the single-phase version up to 7.4 kW and in the three-phase version up to 22 kW. For maximum convenience, DazeBox has a fixed Type 2 connector compatible with all major brands of electric and plug-in hybrid vehicles.
- Charging power up to 7.4 kW in single-phase version and up to 22 kW in three-phase version.
- Integrated Type 2 charging cable compatible with the major brands of electric and plug-in hybrid vehicles.
- Dynamic Power Management available in both single and three-phase charging.
- Photovoltaic system compatible (DPM necessary)
- Residual Current Monitoring (RCM) integrated
- Designed, engineered and manufactured in Italy.
The choice between three-phase and mono-phase depends on the kind of electric system where the EVSE is installed. In a typical household the electric system is single-phase, therefore just install a single-phase DazeBox. Three-phase electric systems instead are typical for utilities where a high availability of electricity is required, such as factories, offices or large homes. However, a three-phase wall box can charge in single-phase too.
It is important to note that the vehicles that can charge in single-phase only can still be charged by a three-phase Dazebox but using just one of the three available phases thus charging more slowly.
A 3 meters long cable is recommended when you are sure to place your wallbox very close to the vehicle charging socket.
A 3 meters long cable gives you the advantage of not having to rewind it after every charge because it is sufficiently short to remain suspended when the connector is placed inside the wallbox.
A 5 meters long cable is the most classic solution and allows you to always reach the charge socket when the wallbox is near the vehicle. This type of Dazebox is supplied with a cable holder to be fixed to the wall.
A 7 meters long cable is recommended when your wallbox is installed far from the vehicle.
This type of Dazebox is supplied with a cable holder to be fixed to the wall.
We believe that home charging should not be a problem for anyone, not even for those with limited energy availability. For this reason we designed the Dynamic Power Management (DPM), available for both the single-phase and three-phase versions of DazeBox.
This system oversees the energy consumption of home utilities and allows to charge the vehicle at the maximum speed without exceeding the power limits.
You have to choose the DPM version according to the home electrical system, a single-phase electrical system needs a single-phase DPM, and the same happens for a three-phases electrical system with a three-phases DPM.
Thanks to the Dynamic Power Management it will no longer be necessary to increase the limit of the home meter to load your car.
