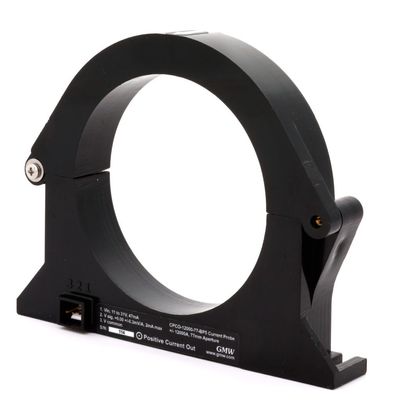

GMW - Model CPCO -DC-AC Clamp-on Current Probe
FromGMW Associates
The GMW CPCO DC-AC Clamp-on Current Probe enables electrically isolated monitoring of high electric currents without disconnection of the primary current conductor.
Most popular related searches
current probe
electrical measurement
electric motor
electrical system
electric heater
power quality
photovoltaic inverter
condition monitoring
electricity monitor
condition monitoring system
- Full-Scale Range: ±500A, ±1kA, ±2kA, ±4kA, ±8kA, ±12kA or ±16kA
- Accuracy: <±1%
- Bandwidth: DC to 40kHz
- RMS Noise: <0.02% of full-scale
- Aperture: 77mm or 160mm
- Operating Temperature: -40°C to +85°C
- Output Signal Options: Single Ended 5.0V±5.0V; Bi Polar 0.0V±5.0V; Bi Polar 0.0V±10V; RMS 0-3V; 4-20mA, 12mA±8mA
Inquire for custom options, e.g. extended current ranges or larger aperture.
* U.S. PATENT 9,952,257
- Electric welding current measurement & control
- Electrolysis, Electroplating and Electrowinning current measurement & control
- Electric furnace current measurement & control
- Electric Heater current measurement & control
- Electric Generator current measurement & control and protection
- Electric Motor Variable Speed Drive current measurement & control and protection
- Battery charge, discharge current measurement, control & safety test
- Electromagnetic actuator current measurement & control
- Electromagnet current measurement & control
- PV Inverter DC/AC current measurement & control
- Short Circuit Current Testing
- Current Input for Electronic Fuse
- Non-intercepting measurement of ion or electron beam current
- Power Quality, AC Current and Harmonic Content
- Condition Monitoring of electrical systems
