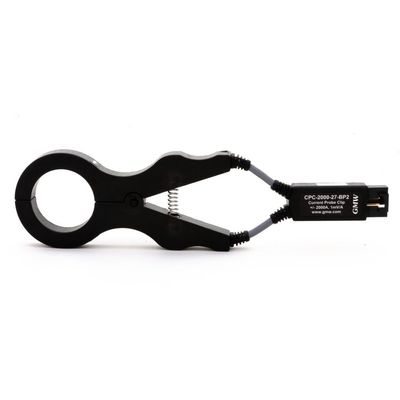

GMW - Model CPC -DC/AC Clip-on Current Probe
FromGMW Associates
The GMW CPC DC-AC Clip-on Current Probe enables electrically isolated monitoring of high electric currents without disconnection of the primary current conductor.
Most popular related searches
current probe
electrical measurement
electric motor
electric heater
photovoltaic inverter
electricity monitor
battery discharge
electric vehicle testing
battery protection
furnace
- Full-Scale Range: ±250A, ±500A, ±1kA or ±2kA
- Accuracy: <±1%
- Bandwidth: DC to 75kHz (-3dB)
- RMS Noise: <0.02% of full-scale
- Aperture: 27mm
- Weight: <30 g (<1 oz)
- Moisture Resistance: NEMA 5
- Operating Temperature: -40°C to +100°C
- Output Signal: Bi Polar, 0.0V±2.0V
- Power Supply: 3.5V to 5.5V; <85mA (typical 65mA)
- Vehicle Test Stands
- In-Vehicle Tests
- Electric Motor Variable Speed Drive current measurement & control and protection
- Battery charge, discharge current measurement, control & safety test
- Electromagnetic actuator current measurement & control
- Electric generator current measurement & control and protection
- Electromagnet current measurement & control
- PV Inverter DC/AC current measurement & control
- Electric welding current measurement & control
- Electroplating and Electrowinning current measurement & control
- Electric furnace current measurement & control
- Electric heater current measurement & control
