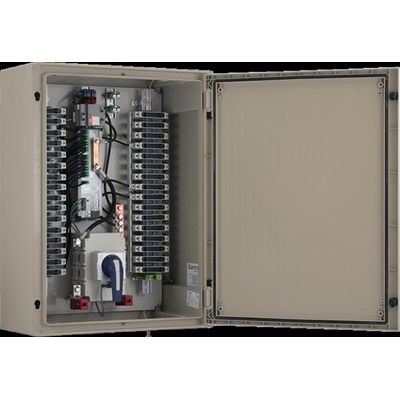

Gantner - Model DCCBs -DC Combiner Box
With the integrated string.bloxx it is possible to monitor inverter-independent precisely the DC side of photovoltaic systems.
Customized monitored and passive DC combiner boxes
In large solar systems monitoring and troubleshooting becomes more complex.
Each operator is interested in finding errors in a module, string, or a group quickly because they can reduce the amount of energy produced and the life of the system greatly. With the help of the Generator Connection Box the individual solar module strands of a photovoltaic system can be connected in parallel and connected to larger wire cross sections to the inverter.
With the integrated string.bloxx it is possible to monitor inverter-independent precisely the DC side of photovoltaic systems. The data exchange between a string bloxx and superior management system can be direct by the open standard Modbus RTU Bus.
DC Combiner Box individual
- 2,4, 8, 12, 16, 24, 32 PV strings can be connected other versions available on request
- Consistent 1000/1500 VDC layout
- String monitoring measure device String.bloxx
- Overvoltage protection SPD 1000/1500 VDC
- Lever type switch fuse in positive and or negative pole with contact protection push-in terminal block for string connection Conductor cross section 1,5 – 10 mm²
- PV Fuse 10-50A 1000/1500VDC in positive and negative pole with contact protection
- DC load break switch 30-400A
- String connection terminals 1,5 - 10 mm², MC4, MC4 EVO2, Sunclix
- enclosure (material: polyester monobloc) IP65 Rack/wall mount
- Cable gland input or MC4, MC4 EVO2, Sunclix panel mount connector
- Features string monitoring “String.bloxx”
- 8,16, 24 Current measurement channels
- 1 analog input channel for voltage, 0-1000 VDC string voltage
- 2 Digital inputs
- Monitoring of overvoltage protection and main switch
- RS485 fieldbus interface up to 115,2 kbps: Modbus-RTU (optional OEM)
- Signal conditioning calculated DC Power, linearization, mean value, Min/Max storage, alarm
- Features String.bloxx 208, 116, 124
- Integrated LC display, Display of all readings including current and DC power
- Analog current measurements ± 26 A
- 1 PT1000 Cabinet temperature sensor
- 1 PT1000 Input
- Monitoring of overvoltage protection and main switch
- Features String.bloxx 116 EM, 124 EM:
- 16/24 Analog current measurements + 26 A
- On board Temperature sensor
