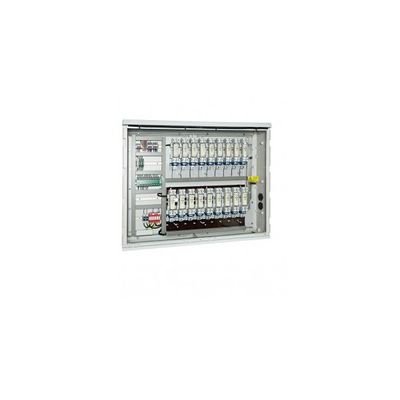

PADCON - DC Combiner Central Box
FromPADCON GmbH
Dc Combiner With Integrated Safety Devices and A High Safety Standard. Spatial separation of plus and minus sides. Protection of individual DC-inputs. Monitoring of current and voltage. Short cabling for inverter connection.
Most popular related searches
Housing
- Installation: Outdoor / Indoor
- UV resistance: Yes
- Material: Polyester, fiberglass reinforced
- Colour scheme: RAL 7035
- Dimensions & Weight
- Housing without bed-plate (width/height/depth): 1440/1120/320mm
- Weight: 100kg
Input parameters
- Permissible DC voltage (U DCmax): Max. <= 1100 V
- Number of DC inputs: Max. 16
- DC connection: Cable lug M10
- Fuse size: 63A-250A
- DC input current: Max. 140A
Output parameters
- Type of terminal: Cable lug M10/M12
- Number of DC outputs: 2
- Output current: Max. 2x 700A, for a short time2x1000A
- Grounding connection: 16mm²-120mm²
Standards
- CE: Conform
- Safety class & Enviromental conditions
- Safety class according to EN60529: IP 44
- Permissible ambient temperatures: -25 °C to +50 °C
- Rel. atmospherix humidity, non-condensing: 15% to 90%
- Altitude above sea level: Max. 2.000 m
Other properties
- Surge protection: Typ 2
Optional
- Mounting: Wall / SKID
- Safety class according to EN60529: IP 54
