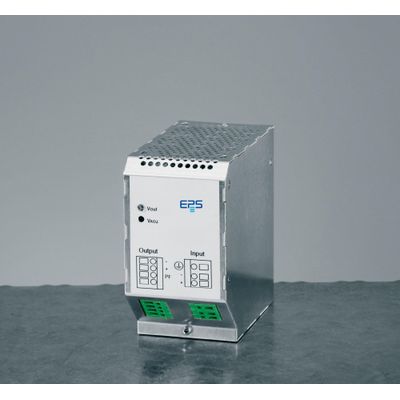

EPS - Model GWH-100+500 W - DC/DC Converter
With a new technology concept EPS Electronic Power Supplies offers the DC/DC converters »EPS/GWH«. Thus a maximum degree is reached by digitization, i.e. analog circuit components are saved and the number of parts is reduced. Thus the susceptibility to interference is reduced as well as the reliability is increased in a considerable degree. The converters can be selected from many different input voltages from 16,8V to 162,5V DC, at 500W, with large voltage range. The adjustable single output voltages are switchable parallel redundantly, in order to realize higher achievements. The interconnected operation is supported by an active current share (> 100W).
DIN rail assembly, 19 “- system ability and optional wall assembly make a broad area of application in the industry, the power supply and traffic engineering as well as Telekom possible. The standard protection is against overload and temperature and supplemental by overvoltage protection, decoupling diode (with 100W optionally) and other equipment possibilities. Like that a remote sense input is present with devices starting from 100W, which can be attached directly at the load, in order to compensate voltage drop on the load lines.
The converters can be supplied optionally ruggedized or railway qualified.
Energy Efficiency: High efficiency, temperature regulated fans (> 100W), latest MOS technology
Scope of delivery:
- Converter
- Screw clamp terminal
- Datasheet
- Order code: 112823
- Voltage: 60 VDC
- Current: 1,7 A
- Power: 100 W
- Design DIN Rail
