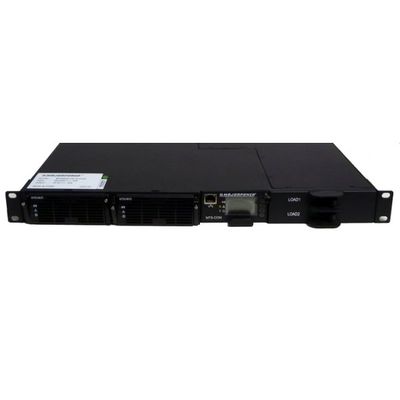

Majortel - Model MTD48/25-130-1U -DC-DC Converter System
The Majortel 1U Converter System is a sleek, compact design that is ideal for applications requiring 48V dc power from a 130V dc power source. Each system is designed to occupy a true 1U (1.75” tall) rack space in a standard 19” wide rack and under 11”deep. Typical installations include two compact, high density and reliable high frequency 25 amp converters, for a total system capacity configuration of 2900W (@58V) output.
The MTD48/25-130-1U converter system includes a simple Load 1 and Load 2 breaker distribution to support multiple isolated output circuit configurations and the MTS-Com centralized man-to-machine interface. The system power capacity is user configurable for 25A (1450W@58V) applications. The dc-dc converter modules are hot-swap capable facilitating field upgrades from 25 to 50 amps in a matter of minutes.
- Wide DC Input Range with User Selectable Output Voltage
- Extended Temperature Operations; Up to 75°C
- Programmable Alarms on Dry-Contacts
- Integrated Remote Communication Package
- Easy, Manageable Monitor Screen
- Quick Check LED Indications
