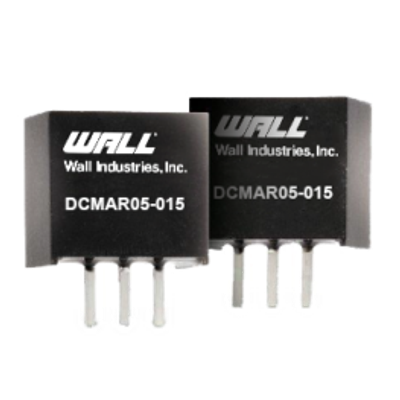

Wall Industries, Inc - Model DCMAR05 -DC/DC Switching Regulators for Industrial Applications
The DCMAR05 series by Wall Industries, Inc. offers a compact solution for DC/DC voltage regulation needs in industrial applications. This series of switching regulators provides a 0.5A output current, encased within a standard SIP-3 package measuring 0.45 x 0.30 x 0.40 inches. Designed for high efficiency with conversion rates reaching up to 97%, these regulators ensure minimal power loss. Emphasizing reliability and compliance, each model features fully regulated single output voltage with low ripple and noise, integrated short circuit, and overtemperature protections. Furthermore, these modules require no minimum load and adhere to RoHS and REACH standards. The DCMAR05 series is versatile across various applications such as medical, military, railway, lighting, and general industrial power supplies, offering robust design flexibility and custom power solutions.The DCMAR05 series of DC/DC switching regulators offers 0.5A output current in a compact 0.45” x 0.30” x 0.40” standard SIP-3 package. This series consists of fully regulated single output models with high efficiency and low ripple & noise. Each model in this series has short circuit and over temperature protection, no minimum load requirement, and is RoHS & REACH compliant. Please contact factory for order details.
- Industrial Standard SIP-3 Package
- Fully Regulated Output Voltage
- Low Ripple & Noise
- High Efficiency up to 97%
- Short Circuit and Over Temperature Protection
- No Minimum Load Requirement
- RoHS & REACH Compliant
Specification Value
Input
Input Voltage (Nominal): 4.75~32, 6.5~32, 8~32, 11~32, 15~32, 18~32
Input Voltage Range: 4.75~32, 6.5~32, 8~32, 11~32, 15~32, 18~32
Input Filter: Internal Capacitor
Output
Output Voltage: 1.5, 1.8, 2.5, 3.3, 5, 6.5, 9, 12, 15
Voltage Accuracy: ±3.0%
Output Current: 500mA
Output Power (Watts): -
Short Circuit Protection: Continuous, Automatic Recovery
General
Efficiency: Up to 97%
Environmental
Operating Temperature: -40 to +90ºC
Storage Temperature: -55 to +125ºC
Physical
Weight: 0.069oz (1.95g)
Dimensions: 0.45in x 0.30in x 0.40in (11.5mm x 7.55mm x 10.2mm)
Case Material: Non-Conductive Black Plastic
Notes & safety
Notes: 1. With an input capacitor 22µF/50V for input voltage >28VDC, input voltage allows 32VDC, max.
2. Other input and output voltages may be available, please contact factory.
3. It is recommended to protect the converter by a slow blow fuse in the input supply line.
4. Natural Convection is about 20LFM but is not equal to still air (0LFM).
5. This series can meet EN61000-4-4 by adding a capacitor across the input pins. Suggested capacitor: CHEMI-CON KY 330µF/100V.
*Due to advances in technology, specifications subject to change without notice.
RoHS Compliance: Yes
