Raycap

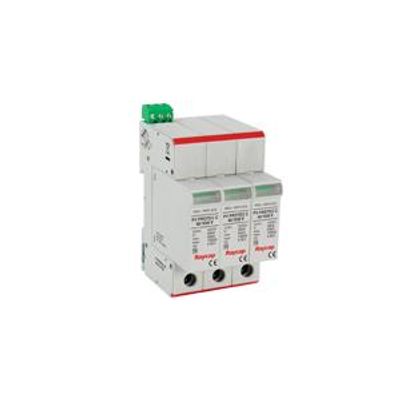

Legacy ProTec Series - DC DIN Rail Surge Protection Device Products
FromRaycap
Legacy PV ProTec C, B and BR series are available in the older style housing and are appropriate for use on the DC Side of the Photovoltaic System.
Most popular related searches
- Location of Use: DC Side of the Photovoltaic Systems
- Modes of Protection: (+)-PE, (-)-PE, (+)-(-)
- Surge Ratings: Iimp = 5kA (10/350µs)
In = 15kA (8/20µs) - Housing: Legacy Modular Design
- Protective Elements: High Energy MOV
- Compliance” EN 50539-11:2013+A1:2014
