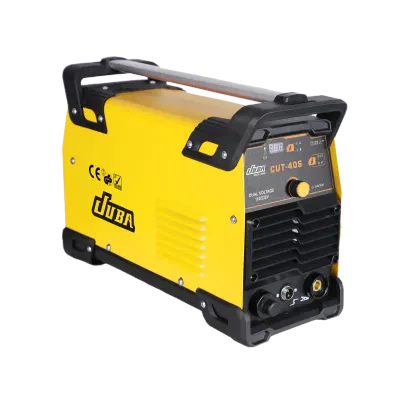

JUBA - Model CUT-40S -DC Inverter Plasma Cutter Power Voltage 120/300V
The CUT-40S DC Inverter Plasma Cutter is a high-efficiency cutting tool designed to handle a wide range of metal types including stainless steel, copper, iron, and aluminum. Notable for its capability to cut through thick metal plates quickly and easily, this plasma cutter delivers a cutting speed 1.8 times faster than traditional flame cutters. The unit features both HF untouched and touched arc-starting cutting for versatility, with no-load voltage at 230V and rated input power of 4.8kVA. It offers a current range between 20-40A, and boasts a 60% duty cycle and 85% efficiency rating. Built with an insulation class F and protection class IP21S, the cutter ensures durability and safety. The device weighs 11 kg and measures 515×245×375 mm, supporting a maximum cutting thickness of 12 mm. Ideal for precision and high-speed cutting tasks, it meets international standards with ISO9001, CCC, EU CE, ROHS, UK UKCA, GS, PSE, and C-ETL certifications.
- Cutting capacity increases 1.8 times higher in cutting speed comparing with flame cutter.
- Thick metal plate can be cut easily and quickly.
- Suitable for cutting stainless steel, copper, iron and aluminum metal etc.
- Simple operation and smooth cutting surface.
- HF untouched Arc-starting cutting(100).
- HF touched Arc-starting cutting(30,40,60).
- Item : CUT-40S : CUT-40S
- Power Voltage(v) : 230 : 120/230
- Rated Input Power(kva) : 4.8 : 4.8
- No-load Voltage(V) : 230 : 230
- Current Range(a) : 20-40 : 20-30/20-40
- Rated Output Voltage(v) : 96 : 96
- Rated Duty Cycle(%) : 60 : 60
- Efficiency(%) : 85 : 85
- Insulation Class : F : F
- Protection Class : IP21S : IP21S
- Weight(kg) : 11 : 11
- Measurement(mm) : 515×245×375 : 515×245×375
- Max.cutting Thickness(mm) : 12 : 12
- Cod.(no) : 860022 : 860034
