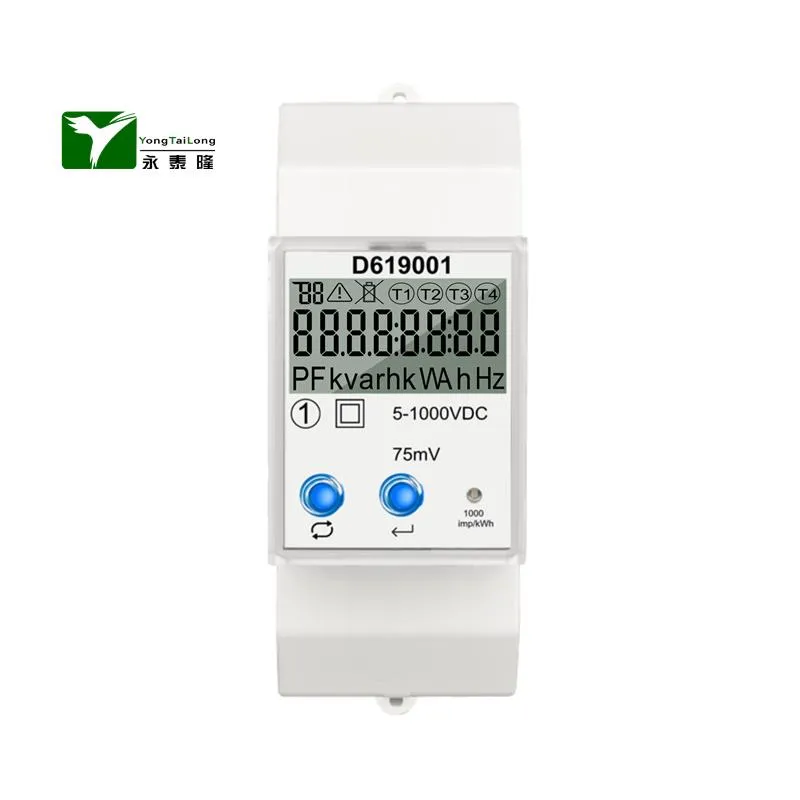

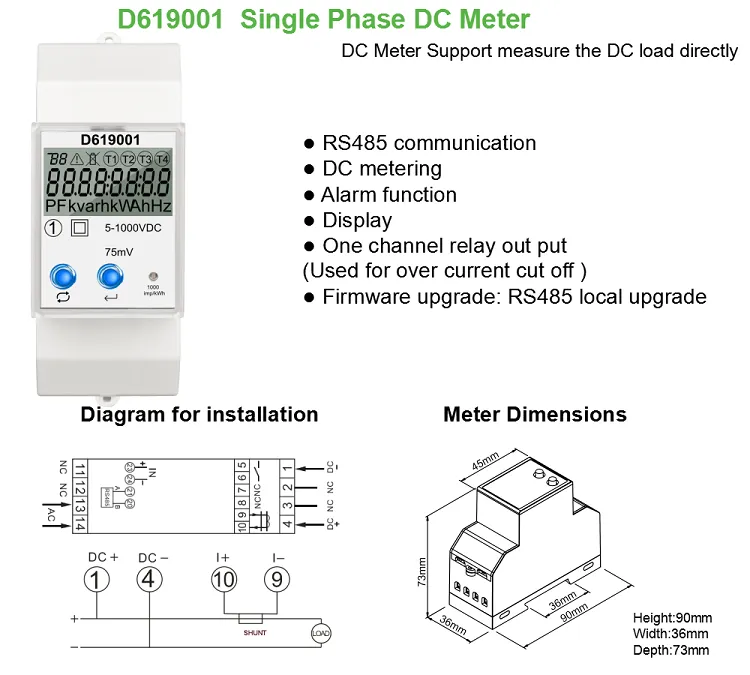

YTL - Model D619001 - DC Meter Support measure the DC load directly

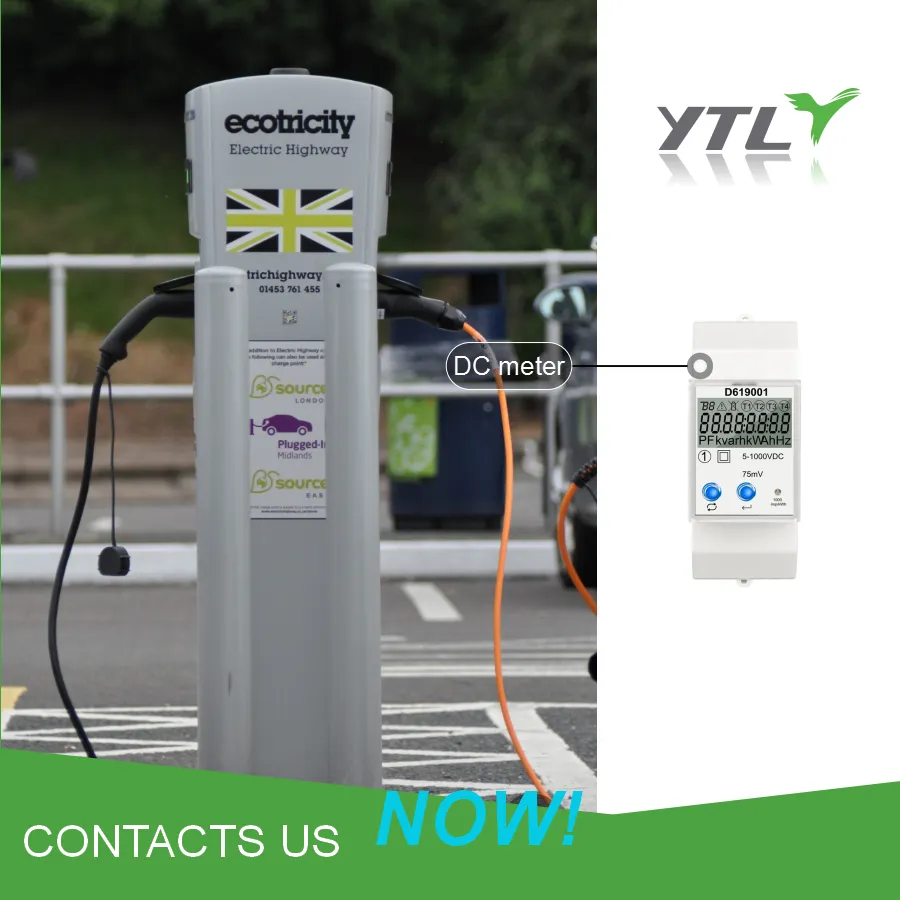

The D619001 is a DC Meter Support measure the DC load directly connected to a shunt and based on shunt signal to maximum 2000A proving both it’s accuracy and quality. allows this model to be used for EV charge

* RS485 communication: used for parameter setting, data reading; DTL645 protocol/Modbus Protocol
* DC metering: using shunt sampling, high measurement accuracy; can measure DC power, current,
voltage,
* Alarm function: Over-current alarm: When the current exceeds the CT1 value set by the meter, an alarm event occurs, and the alarm light on the electrical surface panel lights up (yellow light),
At the same time, the value of the corresponding alarm status register will change, and the user can read this register through communication to determine whether an over-current alarm has occurred.
* Display: LCD with backlight ,Support Various parameters display,energy data and Instantaneous parameters
* One channel relay out put (Used for over current cut off )
* Firmware upgrade: RS485 local upgrade

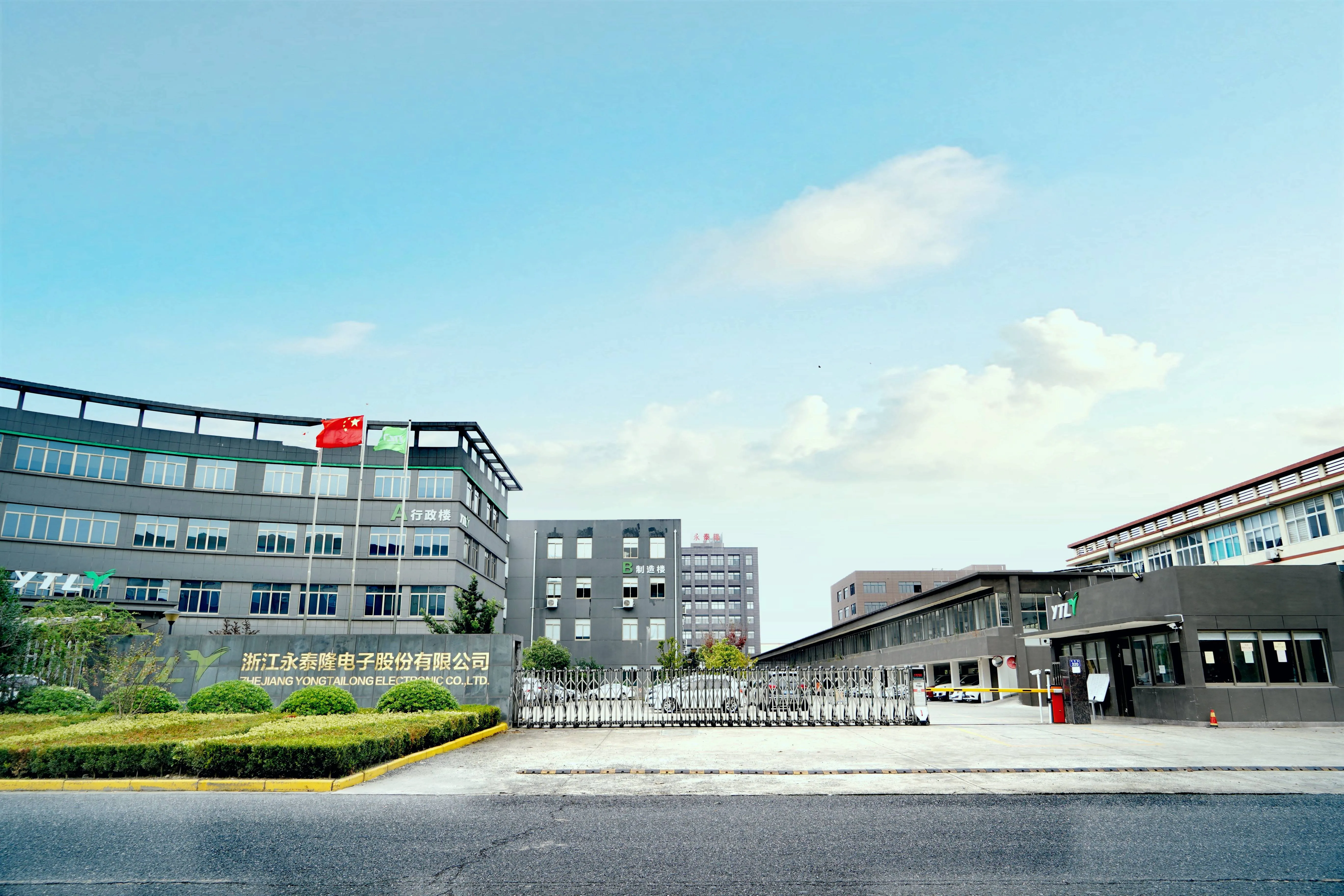

Established in 1995, Zhejiang Yongtailong Electronic Co., Ltd. is located in the center of Shanghai, Hangzhou and Suzhou cities.As a professional manufacturer, YTL designs and produces electronic energy meters which are cost-efficient and ideal for the use in solutions for AMR/AMI at residential as well as industrial applications. YTL was one of the first companies in the domestic market with which had an internal R&D department as well as international sales business. Since our foundation in 1995 we have grown to a manufacturer which complies and meet to many specifications from our national and international partners. At present our export volume makes us a leading company for technology and product export to more than 50 countries throughout the world. YTL is devoted to develop and design all types of electronic energy meters, concentrators and solution applications. With a combined design of the special accessories, we have successfully developed series of competitive products of small size, multifunction, low power consumption and excellent performance. We offer a one-to-one service to our partners. With annually over 68 projects that are successfully finished and holding over 200 patents of design rights, we are also advanced in the technology and patents of current sampling.
