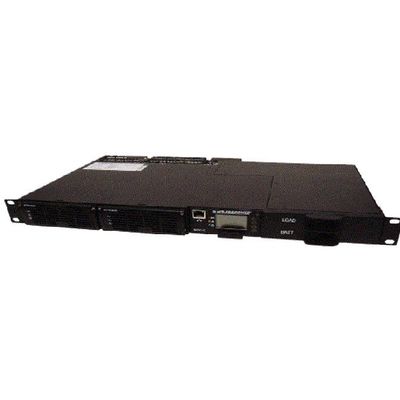

Majortel - Model MTS48/50AT-1U -DC Power System
The Majortel 1U System is a sleek, compact design that is ideal for applications requiring dc power. Each system is designed to occupy a true 1U (1.75” tall) rack space in a standard 19” wide rack and under 11”deep. Typical installations include two compact, high density and reliable switch-mode rectifiers, 25 amps each for a total system capacity configuration of 2900W.
The MTS48/50AT-1U includes a simple load and battery breaker set-up for a bulk feed configuration. This power system was designed for the user application demanding bulk distribution while operating in a battery equipped architecture. The most common deployments are sites built around battery support systems that utilize external distribution.
- Wide AC Range; Full Power with 120/208/240 VAC, 1Ø
- Extended Temperature Operations; Up to 75°C
- Programmable Alarms on Dry-Contacts
- Integrated Remote Communication Package
- Easy, Manageable Monitor Screen
- Quick Check LED Indications
AC Input
- Voltage: 120 or 208/240 VAC, 1Ø
- Frequency: 45-65 Hz
- Power Factor: >0.99
- Efficiency: 92%
DC Output
- Capacity: 50 Amps; 2900W
- Voltage: 42-58 VDC
- Voltage Regulation: ±0.5%
- Soft Start Time: < 8 sec
Distribution
- Load: 1@50A
- Battery: 1@50A
- LVD: Integrated; Battery
Environmental
- Operation Temperature: -40ºC to 75ºC
- MTBF: >253,000 Hr
- Cooling: Forced Air; Variable Speed
