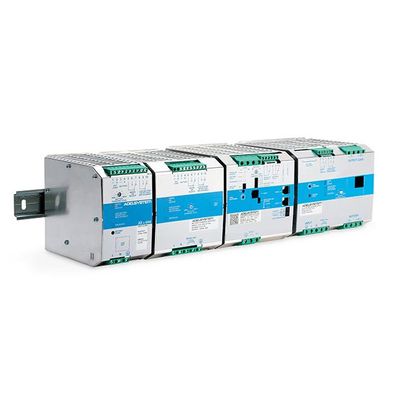

Adel - Model CBI - DC-UPS Switch

SHARE

They use switching technology with microcontrollers and optimize the loading and unloading times of the accumulator without a deep discharge, the switching from the battery to the charger without any interruption, automatic protection without fuse against the reserve polarity, short circuit and overload and overvoltage.

Most popular related searches
power outage
battery charger
battery testing
backup power
battery management
power backup battery
UPS power backup
backup power battery
battery module
voltage sensor

Main features

  • Output current 2,5 A ÷ 20 A even in case of power outage (shortage)
  • Automatic allocation of available power between load and battery charging up to twice-rated output current
  • Power output: 120W, 240W, 280W, 500W, 600W
  • Visual indication of "power shortage","defective battery", "battery voltage< 30%", "battery charging level", self-diagnostic with flashing LED code
  • Warning relays: "main or back-up" and "defective/flat battery" with galvanic isolated output contacts NO-NC
  • 3 charging levels: "boost", "trickle" and "recovery"
  • Self-diagnosis "overload", "battery sulfutation", "reverse polarity connection", "elements in short circuit", "protection against short circuit"
  • Compatible with a remote connection to select "boost" or "trickle" charging mode
  • Accessories upon request: external temperature sensors; voltage drop compensation; remote LED display
  • Compact dimensions
  • Ambient temperature operation: -25 ÷ 70°C
  • IP 20

Start Battery Button feature

  1. AC MAIN FAILURE
  2. DC-UPS continues to power backup through the BATTERY
  3. AC Power failure longer than expected.
  4. Replace the battery with a new one
  5. Push the START BATTERY button for 3 seconds
  6. Production continuity is guaranteed
  • Communication protocol: Modbus RTU, Modbus TCP/IP,  SNMP
  • Diagnostic checks on the internal battery through the Life Test.
  • Select the most appropriate charging curve to maximize the system efficiency.
  • Long-life battery while intensifying its performance (AGM Open Lead Acid/Sealed Lead Acid, Gel, Ni-Cd, Li-Ion).
  • Equipped with relays to warn against the power outage and the defective battery.
  • Conform to the most innovative battery management as electrical safety standards.
  • DIN Rails.

The CBIs combine the functions of:

  • Power Supply
  • Back Up Module
  • Battery Charger
  • Battery Tester
