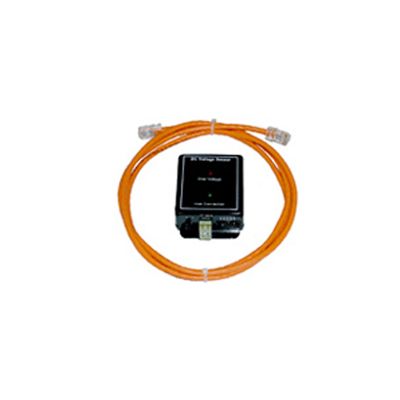

SensorHawk - Model SH-DCV-00 - DC Voltage Smart Sensor

SHARE
The DC Digital Voltmeter is used to indicate the presence or absence of DC line voltage. Readings are available in both an absolute value and a percentage of full scale. Full scale is user programmable with both the base and top voltage from -60 to 0 or 0 to 60 volts.
Most popular related searches
power monitoring
voltage sensor
power sensor

SMART SENSOR FEATURES

  • View from any web browser
  • Quick and simple set-up and configuration
  • Receive email and SMS alert notifications
  • Supports SNMP polling
  • Easy firmware updates

SPECIFICATIONS

  • Length: 1.5 meters (5 feet)
  • Maximum Extension Cable Length: 305m (1000 feet) with standard CAT 5 cable
  • Sampling Rate: Multiple Readings per Second
  • Measurement Accuracy: ± 1%
  • Measurement Range: -60V DC to +60v DC
  • Communications Cable: RJ45 jack to sensor using UTP Cat 5 wire
  • Conversion Time: 280 msec
  • Disconnect Alarm: Relay alert if sensor becomes interrupted or disconnected.
