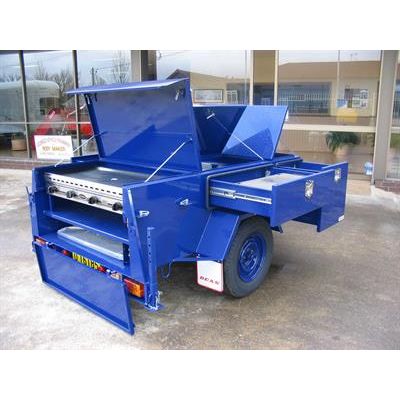

Dean - Model 25 - Emergency Catering Trailer

CAPACITY

• Load capacity: 0.4 tonne
• ATM: 0.75 tonne
• Tare Weight: 0.35 tonne

DIMENSIONS

• Length Overall: 3.3m
• Width Overall: 1.7m
• Tray Size: 2.1m long x 1.2m wide

SPECIFICATIONS

• Suspension: AL-KO independent rubber suspension
• Wheels: 14 x 5 Ford 5 stud - white
• Tyres: 185/75R14C light truck tyres
• Mudguards: Welded to tray
• Mudflaps: White with Dean logo
• Jockey wheel: Swivel 150mm type on drawbar
• Coupling: Fixed 50mm quick release ball with safety chain
• Lighting: All LED multi-volt combination lamps
• Electrical Connection: Flat 7 pin plug
• Brakes: Unbraked
• BBQ: 4 burner hot plate at rear
• Water: 60 litre water tank under floor with manual pump
• General storage: 500 litre middle area
• Cool storage: 200 litre front area
• Tables: 4 side extension tables 500mm x 500mm

EXTRAS

• Optional extras: Mounted spare wheel and tyre
• 9 inch Mechanical override brakes
• Twin 9kg LPG bottles plumbed to BBQ
