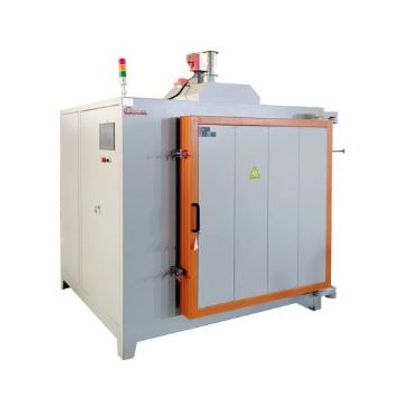

Brother Furnace - Debinding Pyrolysis Furnace
The Debinding Pyrolysis Furnace from Brother Furnace is an advanced solution designed for precise thermal debinding and pyrolysis processes. This furnace system comprises an air preheating system, a dedicated debinding furnace, and a pyrolysis furnace to ensure effective removal of binding agents and controlled pyrolysis of organic compounds. Key features include an air preheating furnace, debinding furnace, and VOC flue gas pyrolysis furnace for the efficient handling of volatile organic compounds. This state-of-the-art furnace is capable of catering to specialized needs, with customizable sizes and designs available upon request. Ideal for industrial applications where precision and reliability are paramount.
This new debinding pyrolysis furnace is composed of an air preheating system, debinding furnace, and pyrolysis furnace.
Debinding Pyrolysis Furnace Features
- Intelligent Control
- Uniform Temperature
- Stable Operation
- Durable & Reliable
1. Air Preheating Furnace
- Chamebr size: Φ130 mmx600 mm
- Equipped with Rotameter with flowrate of 15-150m/h.
- The fan and heating device have a linkage to match the program and increase the heating lifetime.
- The fan frequency, air flow, and temperature could be set by an HD touch screen with a button start.
2. Debinding Furnace
- The chamber adopts 310S stainless steel material, the working size is 800x800x1000mm.
- The furnace has an active preheating gas inlet and passive safety gas inlet system and also has a two-way gas outlet to increase the debinding efficient.
- The furnace equip a high rotation speed spoiler fan, the debinding temperature uniformity is less than ±5℃ The heating mode is three sides: left, right, and bottom, the temperature control is separate, and synchronous interlock.
3. VOC Flue Gas Pyrolysis Furnace
- The special gas circuit design is able to ensure the VOC flue gas stays enough time at high temperature zone and then completes pyrolysis.
- The draught fan is variable frequency adjustable and the maximum volume is 2800m/h, so it effectively improves the debinding efficient upper limit.
- There are two K type thermocouples to achieve real-time monitoring for the debinding temperature. When the flue gas (tar, paraffin, and resin, etc) quantity is large, please select the specified debinding tank to ensure the pyrolysis effect.
