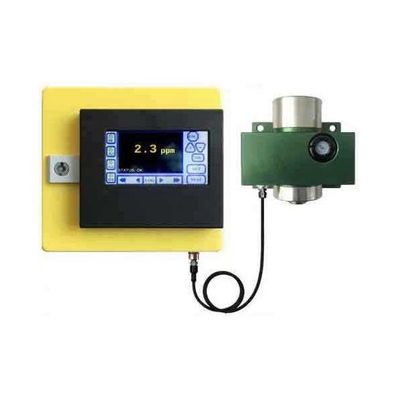

Deckma - Model WMD-1005 -Water in Oil Monitor

Property: Value

• Range*: 0 – 600 ppm "free" water
• Resolution*: 1 ppm, lower Range
• Accuracy: up to +/- 10 ppm below 100 ppm
• Response time: < 5s
• Sample Water Pressure: >max. 10 bar
• Sample Flow: typ. 2 Liter / min
• Sample Water Temperature: up to 65° C
• Power Supply: 24 V – 240V AC or DC
• Power Consumption: < 10 VA
• ppm Alarm: 2  adjustable ( independent, entire range )
• ppm Alarms delay: 2 adjustable ( independent, from 1 sec. up to 540 sec.)
• ppm Alarm visual indication: 2 Red LEDs
• ppm Alarms Contact Rating: 2 Potential free 1 pole change over contacts, 3 A / 240 VAC
• System Fault Alarm visual indication: Red LED
• System Fault Alarm Contact Rating: Potential free 1 pole change over contact, 3 A / 240 VAC
• Output Signal: 0(4) – 20 mA, ext. Load < 150 W,  Output range adjustable
• Cleaning System*: Automatic, pneumatically operated
• Cleaning system air pressure*: 2.5 - 6 bar, typ. <0.1 Liter / hour
• Ambient Temperature: + 1 to + 55° C
• Size*: 360 mm W x 240 mm H x 120 mm D
• Distance (Computer Unit to Measuring Cell): Option: up to 5m upon request
• Degree of Protection: IP 65
• Weight*: 4 kg
• Pipe Connections*: R ¼" Female

* Different versions and configurations available.
