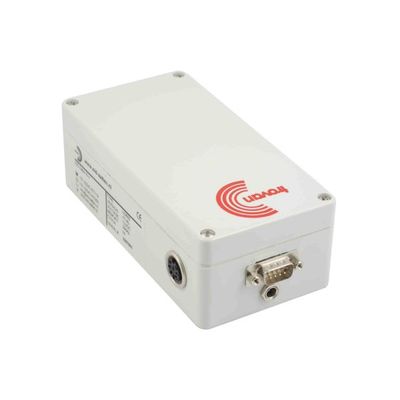

Trovan - Model LID-650 - Decoder
FromTrovan Ltd.
Requires regulated 12 VDC +/-5% linear power supply. RS232 interface, 1200 ... 19200 baud. Relay output, selectable potential free or 12 VDC no/nc. Buzzer on board. IP65-rated housing; Available wall mount option (specify accessory no. HOU6XX_W). Access control system by Trovan Access Guard software (model LID-650A). Realtime clock/calendar. 256kb EEPROM for data storage. 6,400 IDs without date/time stamp; 3,200 with date/time stamp.
Most popular related searches
- Windows software for programming and control of the equipment.
- Optional lithium backup battery for clock / calendar.
- Optional 512kb EEPROM to store 12,800 ID codes without date / time stamp; 6,400 identification codes with date / time stamp.
- Optional 1024kb EEPROM to store 25,600 date / timeless ID codes; 12,800 with date / time.
- 2 optional TTL lines for serial clock-calendar or wiegand protocol (only when RS485 is disabled).
- Optional additional output relay (only when RS485 is disabled).
- Use with ANT-610, ANT-611 and ANT-612 antennas.
- Dimensions: 190 x 138 x 68 mm (7.5 in. x 5.4 in. x 2.7 in.)
