Model IPS02-1LT - Decora Motion Sensor ...

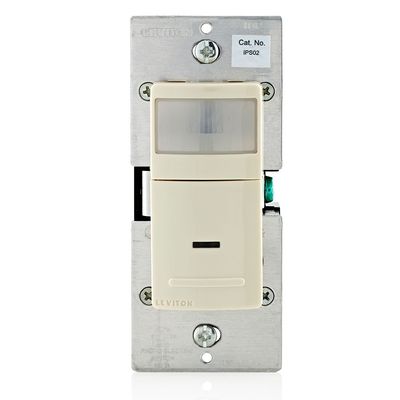

Model IPS02-1LT - Decora Motion Sensor In-Wall Switch, Auto-On, 2.5A, Single Pole

FromLeviton Manufacturing Co., Inc.

SHARE

Occupancy/motion detector, 180 Degree PIR Wall Box Sensor, Single Pole, 300W Incandescent, 150W LED and CFL, 2.5 Amp, 200W ELV, MLV and Fluorescent, Wallplate not included, Light Almond. CONVENIENT - Detects motion and turns lights ON/OFF automatically. ENERGY SAVING – Helps prevent lights from being left on when room is vacant. ADVANCED – Prevents automatic ON when space has ample natural light. FLEXIBLE – No neutral required, can be used for retrofit or new construction.

Most popular related searches

natural lighting

energy management

lighting energy

Universal Light Control - Switches Incandescent, CFL, LED, Electronic Low Voltage and Magnetic Low Voltage Loads using relay technology
Automatic-ON/Automatic OFF operation for seamless energy management
Low-Profile design eliminates an obtrusive "scanning device" look. Elegant styling compliments any interior and coordinates with Leviton`s popular line of Decora® wiring devices
180 degree field-of-view provides approximately 900 square feet of coverage suitable for bathrooms, basements, garages, utility rooms and a variety of other residential areas
Convenient push-button provides Manual OFF light switching at any time
Segmented lens provides optimum sensitivity and performance. It is designed with an extensive "minor motion" area where even slight body movements will be detected
Four optional manual adjustments for delayed-OFF time settings maximize energy savings: 30 seconds (for walking test), 5 minutes, 15 minutes and 30 minutes
LED Indicator Light flashes when sensor detects motion to verify detection is active
Unit can be used for 120V lighting. Compatible with both electronic and magnetic ballasts or 1/6 HP loads
Fits in standard wallbox and replaces single-pole wall switch
Neutral wire not required, suitable for retrofit and new construction applications
Five-Year Limited warranty

Product Features

Auto-ON/Auto-OFF: Yes
California Title 24: No
Color: Light Almond
Coverage (Sq.Ft.): 180°, 900 Sq. Ft.
Grade: Residential
Ground Connection: Required
LED Color: Green
Load Rating: 150W LED/CFL, 300W Incandescent/Halogen, 1/6 HP, 200VA ELV, MLV, Fluorescent Ballast, 2.5A Resistive
Mounting Type: Wall Switch
Neutral: No
Pole: 1

Sensor Technology: Passive Infrared
Sensor Type: Occupancy
Standards and Certifications: UL, FCC
Style Name: Decora
Switch: Relay
Time Delay: 30S, 5M, 15M, 30M
Torque Range: 14 – 18 in.-lbs
Voltage: 120 VAC
Wallplate: Order Separately
Warranty: 5-Year Limited
