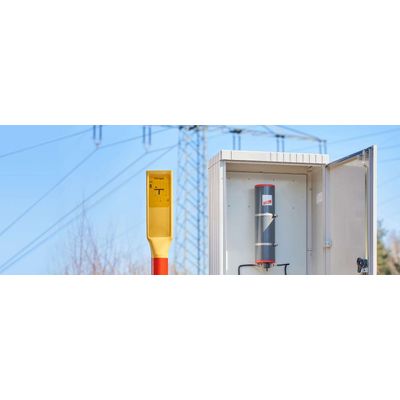

DEHN - Model DASD -Decoupler

SHARE

Protect employees, limit overvoltages, prevent AC corrosion. The decoupler DASD provides protection against transient, temporary and long-duration overvoltages.

Most popular related searches
power supply system
high voltage generator
overvoltage
power line

This means:

  • Protection against impermissibly high touch voltages for people working on the pipeline
  • Protection for systems and components
  • Protection against AC corrosion

This has the advantage that the desired cathodic protection potential (DC potential) of the pipeline is not negatively affected.

They lead to AC corrosion across the pipeline and to personal injury and material damage.

Examples of sources of interference:
  • Stray currents - These are caused by electric railways and are injected into the pipeline via the ground. Corrosion damage occurs which changes the potential of the pipeline.

  • Electromagnetic fields - High-voltage lines generate electromagnetic fields which are injected into the pipelines which run in parallel. The undesirable consequences are alternating current corrosion (AC corrosion) and high touch voltages.

  • Potential gradient areas in the ground - These are caused by earth faults and lightning strikes. High overvoltages can travel throughout the entire pipeline network if such a potential gradient area affects the pipeline.

DASD allows you to limit long-duration AC voltages to safe values. The cathodic protection potential across the pipeline (DC potential) is not affected.

Safety for your employees

In case of failure of the DASD, the device enters a fail-safe state – People working on the pipeline are still protected against touch voltages.

Applicable anywhere

DASD is independent of an external power supply. The decoupler can therefore be used anywhere - even in places where, depending on the situation, there is a particularly high risk of interference voltages, potential changes or stray currents.

1 IP68 housing - Water- and dustproof, for outdoor installation

2 Integrated test socket - For easy functional testing of the decoupler

3 High discharge capacity - Transient 100 kA, temporary 3.7 kA, long-duration 45 A

4 Clearly marked - No danger of confusing the pipeline and earth connection

5 Fail-safe failure mode - Safe state in case of overload
