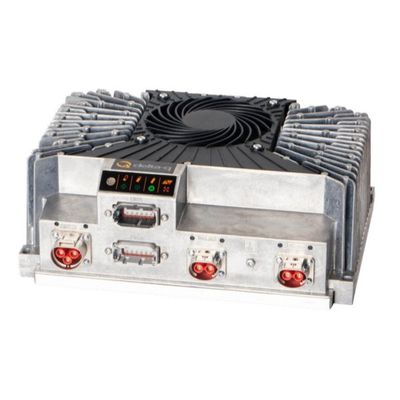

Delta-Q - Model XV Series - 3-in-1 Mid-power Charging System
The XV Series is the best-in-class, 3-in-1 mid-power charging system. It is compact, scalable and reliable – an ideal charging solution for powertrain electrification! The chargers are integrated with a 3.3 kW high-performance charger, 500 W DC-DC converter and an EV charging station (EVSE) interface. Optimally charge all battery chemistries and nominal voltages between 48 V to 96 V with this low-voltage charging system. Easily parallel these chargers to provide 3.3 kW up to 20 kW of power. Charge from standard EV AC charging stations across North America and Europe.
-
Most popular related searches
Key Benefits
Save Cost and Space
As a 3-in-1 charger, the integrated DC-DC converter, charger and charging station interface save space, cost and removes the need for extra components.
Greater Flexibility and Scalability
OEMs can offer more charging options for their end-users with the EV charging station interface feature and by using the chargers in parallel, they can provide up to 20 kW of power for faster charging options and heavy-duty vehicles.
Enhanced Safety and Protection
The XV series is protected against short circuit, over-voltage and over-temperature. As a low voltage charging system, it is safer to operate and more economical than higher voltages.
Key Product Attributes
48V, 80V, 96V Charging Voltages
Optimally charge all battery chemistries and nominal voltages between 48 V to 96 V for safer operation while on-board a vehicle as compared to higher-voltage chargers.
Scalable Power
Easily mount the chargers in parallel to provide 3.3 kW up to 20 kW of power.
High Reliability
Compact, rugged and IP67-rated, the charger is protected from dust, liquids and the effects of immersion in up to one meter of water.
DC-DC Converter
Save space and cost by integrating a 500W DC-DC converter into your machine to provide auxiliary power to operate vehicle accessories.
EV Charging Station Interface
Compliance with SAE J1772 (level 1 and 2) and IEC 61851 (mode 2 and 3) enables charging from standard EV AC charging stations across North America and Europe.
Enhanced Protection
Protected against short circuit, over-voltage and over-temperature to ensure safe operation.
