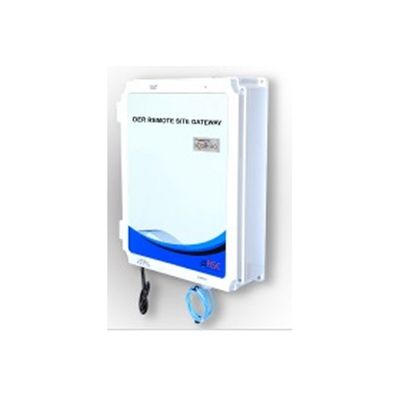

ASE - Model SYNC2310 - DER Remote Site Gateway

DER Remote Site Gateways come with a comprehensive device management service through ASE/Kalkitech’s kalki.io device management solution. It provides a secure, centralized device management service. Kalki.io service can be used to update gateway firmware, security patches, license, and configuration files to the gateway. It also acts as a central repository for configuration, settings, and logs retrieved from the field gateways. Kalki.io can also be useful for continuous monitoring of events and alarms from the gateway and helps users to take necessary actions on time thereby minimizing downtime and truck rolls.

Kalki.io remote device maintenance access service provides a role-based remote configuration and management access for field devices such as inverters, DER controllers, storage controllers, or meters by extending connectivity from the programming port of the field device with the engineering and configuration tool situated at a remote location over a public/ private network on a secured link.

• SunSpec CSIP certified IEEE 2030.5 aggregator client used for utility integration
• Field device integration supported over -Sunspec Modbus, DNP3.0 Serial and TCP, IEC61850
• OPC UA, MQTT, IEC60870, DLMS, SNMP protocols supported
• The device is secured from the ground up including OS, kernel, and applications software, user permissions, firewalls
• All software releases and patches are signed using manufacture specific PKI trust chains
• Role-based remote management and device maintenance access managed and maintained by ASE/Kalkitech-Systems PKI infrastructure
• Rule 21 PKI infrastructure approved by utility/regulator can be used for establishing IEEE2030.5 connection with utility DER Headend Server
• Secured remote device access for field equipment maintenance and updates (eg: Inverters or DER controller configuration)
• Basic digital and analog logic programming supported. Enhanced programming based on IEC 61131-3 is available on request*

Rule 21 / CPUC regulations in California require all Smart Inverters to be compliant with IEEE 2030.5. This compliance can be met by directly implementing IEEE 2030.5 in the Smart Inverter or using an IEEE 2030.5 / CSIP Certified Gateway.

SYNC2000 Gateways are ideal for this requirement. They are rugged, compact, and secure hardware that supports IEEE 2030.5, SunSpec Modbus, DNP3, and IEC 61850. SYNC 2101 family supports native Digital I/O and Analog Inputs with a comprehensive Logic Programming Engine based on IEC 61131. The SYNC 2101 controller can be used to communicate directly with Utility SCADA or head-end over native TLS 1.2 connections or over DNP3 both for monitoring and also to do control action.

With support for Cloud Connectivity to Azure, AWS, and IBM Cloud IoT infrastructure and generic MQTT support and support for kalki.io device management framework, SYNC2000 and SYNC 2101 are for complying with Rule 21 requirements.

Rule 21 / CPUC regulations in California require all Smart Inverters to be compliant with IEEE 2030.5. This compliance can be met by directly implementing IEEE 2030.5 in the Smart Inverter or using an IEEE 2030.5 / CSIP Certified Gateway.

SYNC200 Embedded Modules are ideal for this requirement. They are rugged, compact, and secure hardware that supports IEEE 2030.5, SunSpec Modbus, DNP3, and IEC 61850 and can be integrated into your Smart Inverters. SYNC200 modules support APIs to build a proprietary interface to your Inverter Application.
