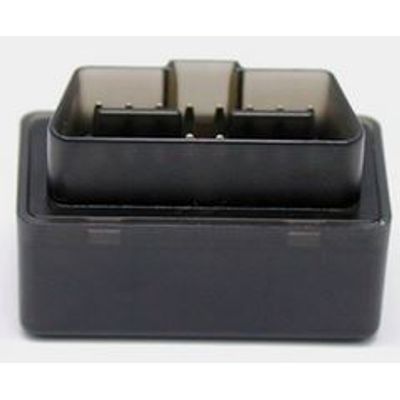

OrigoModel V01HW OBDII -Diagnostic Scanner

SHARE

High Quality Diagnostic Tools - The OBD2 Code Reader Scanner is latest PC-based OBD2 universal auto diagnostic test tool. It support all OBD2 self-diagnostic systems and their compatible communication protocol tests. Powerful Functions - It can be connected to PC or desktop computer for reading fault codes and know their meanings, clearing fault codes and and displaying the sensor`s data flow, quite powerful in functions. Free Program - Its OBD2 software is a complimentary program which allows you to get information about your car`s computer via your PC and hardware interface. Easy to Use and Learn - The software supports for DOS Windows computer operating systems. USB interface output, it can be connected to the PC USB interface through the RS232 conversion protocol, more convenient. Compatible Models - It supports car models using the OBD2 protocols (including VPW, PWM, ISO, KWP 2000, CAN protocol) produced after 1996.

Most popular related searches
  • Hardware: V1.5, software: V2.1.
  • Allows you to get all kinds of data about your car`s engine computer, easy operation.
  • SAE J1850 PWM (41.6Kbaud)
  • SAE J1850 VPW (10.4Kbaud)
  • ISO9141-2(5 baud init, 10.4Kbaud)
  • ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
  • ISO14230-4 KWP (fast init, 10.4 Kbaud)
  • ISO15765-4 CAN (11bit ID, 500 Kbaud)
  • ISO15765-4 CAN (29bit ID, 500 Kbaud)
  • ISO15765-4 CAN (11bit ID, 250 Kbaud)
  • ISO15765-4 CAN (29bit ID, 250 Kbaud)
  • SSID WIFI-OBDII
  • IP 192.168.0.10
  • Port 35000
  • MCU ST or PICI8F25K80
  • Software Platform Android/Windows/IOS
  • Operation Voltage 9V~16V
  • Operation Current 65mA
  • Standby Current 45mA
  • Operation temperature -40°C~85°C
  • Operation Humidity <60%
  • Dimensions 43mm*25mm*75mm
  • Interface 16pin OBDII standard interface

Ordering information

  • Model No. Description
  • V01HW-1 ST MCU
  • V01HW PICI8F25K80 MCU
