Diesel Fuel Purifier
SkimOil’s TheFuelPurifier is a simple one step unit that removes 99.9% water and 95% to 98% of dust, dirt, and other normal and natural contaminates found in all diesel fuel. Even today’s 'clean' diesel fuel will easily become contaminated during transportation and storage. Unlike all other products on the market, TheFuelPurifier performs this function without the use of a replaceable, changeable, or cleanable filter element, cartridge, or bowl. By removing contamination immediately before the fuel enters the engine’s filter system, the purifier delivers cleaner fuel (virtually eliminating filter clogging), and therefore greatly extending maintenance intervals.
How Does The Fuel Purifier Work?

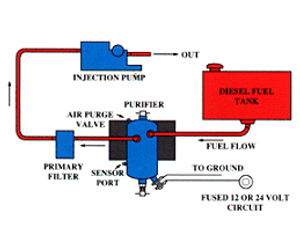

The Fuel Purifier is a unique product utilizing a three-stage purification process using two well-known fuel separation principles, centrifugal and coalescence. Keep in mind here—that there are no moving parts—the only thing moving is the fuel—being pumped thru TheFuelPurifier.
As the fuel enters the purifier, it flows downward in a circular movement through a internal baffle system entering the lower chamber of the purifier.
In the first stage, the velocity of the fuel slows down considerably, allowing any free water droplets and other contaminates to maintain their mass and not emulsify with the fuel. These impurities accumulate and remain at the bottom of the purifier until purged.
In the second stage, the fuel migrates through three perforated baffle plates to stop any particulates and attract, by way of coalescence, any water droplets still remaining.
In the final stage, the fuel passes through the pa...
In the final stage, the fuel passes through the patented coalescence medium to assure that any small water droplets or particulates will be coalesced out of the fuel stream. Only the clean fuel rises to the top, providing a cleaner burning fuel for quicker ignition and better combustion. Consistent clean fuel helps to increase the engine’s dependability, power, and efficiency.
Simple enough? — YEAH! — and no moving parts!

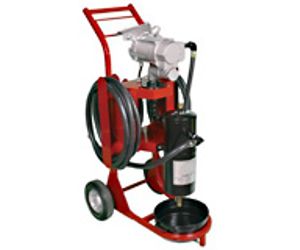

Portable Tank Cleaning Unit
Portable Tank Cleaning Unit is a portable contaminate removal system for use in both above and below ground storage tanks. It is designed specifically to remove water and other contaminates common to stored diesel fuel.

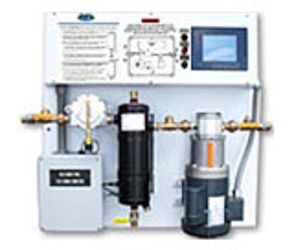

Automatic Fuel Recirculating Systems
Diesel fuel begins to deteriorate as soon as it is produced. This problem poses no threat if the fuel is consumed quickly. Unfortunately, diesel fuel may be stored for years. This deterioration affects the fuel’s pumpability and combustibility. Aged fuel tends to repolymerize, forming submicron particles, causing excessive wear to injector pumps, clogged filters and sludge deposits.
By recirculating your fuel stores, you can fight the contamination battle by constantly recirculating the fuel and removing water, dirt, and algae before it builds up and poses a threat to your equipment. When your fuel is free from contaminants, your equipment will show increased reliability and performance, as clean fuel burns cleaner.
Advantages of the Fuel Purifier
There are many advantages and benefits to the owner and operator with the installation of a Fuel Purifier. These advantages include the following:
Engine Benefits
- Eliminates all water from the fuel system, thus avoiding time consuming break downs while preventing the formation of damaging sulfuric acid.
- Removes all solid particles from the fuel system, including oxides, dirt, rubbish, and all other impurities with a density greater than that of the fuel itself.
- Preheats the paraffin contained in all fuel, providing superior lubrication of the entire fuel system including the injector pump, injectors and cylinder walls (heater-optional part).
Economic Benefits
- Reduces down time.
- Extends the life of the injection pump and the injectors.
- Extends the life of the primary filter.
- Protects and extends the life of the engine.
- No internal or external parts requiring service or replacement.
Ecological Benefits
- Increases the operating life of fuel filters.
- The major component of fuel filters is paper. Use of TheFuelPurifier results in fewer trees being cut each year.
- Reduction in land fill due to fewer fuel filter replacement.
- Providing fuel that is free of water and suspended particulates is the first step in exhaust emissions control.
- Significant improvement in exhaust emissions. Tests on TheFuelPurifier show that smoke emissions were reduced by 17.3%, carbon monoxide emissions by 10.4%, and nitrogen oxides by 5.9%.
