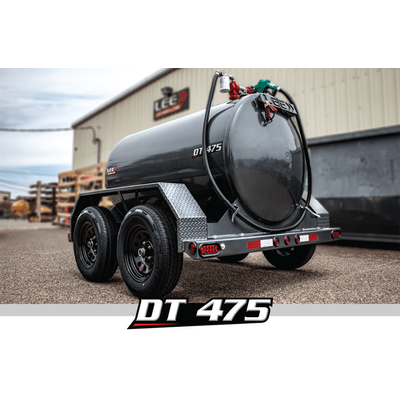

LeeAgra - Model DT 475 -Diesel Fuel Trailer

Highly Visible

LEE diesel fuel trailers are highly visible in your rearview mirror which increases safety while backing up, compared to generic square designs

Tank made of 10 Ga. steel

Excellent resistance to deformation, bending, and impact. Its thickness ensures long-lasting durability, even under heavy use or harsh conditions, allowing tanks to maintain their structural integrity for years.

Rigid Trailer Frames

The heavy-duty trailer frame withstands the toughest conditions on any farm and dirt roads.

Tread Plate Fenders

Heavy-duty fenders provide a sturdy service

platform and protect the tank and tow vehicle from debris during transport.

Heavy-Duty Suction Pipe

Standard suction pipes can break with the movement of fuel in the tank. Our custom suction pipes are the strongest on the market and will never need repair.

Rear Bumper

The rear bumper provides a sturdy platform for accessing the fuel nozzle.

Vented Filler Cap

Built-in ventilation to prevent pressure buildup, allowing for smooth fuel flow while reducing the risk of spillage or leaks.

Particle and Water Filtration

Advanced filtration that protects your equipment by removing dirt, debris, and water contaminants.

Fuel Gauge

Precisely measures fuel levels within the tank.

• Capacity: 500 gallons
• Pump: 12 Volt, 20 GPM
• Dry weight: 1060 lb
• 7,000 lb G.V.W.R.

Trailer

• 4″ channel frame
• Gusset plates for added strength
• Steel tread heavy-duty fenders
• Forged 2-5/16” coupler
• Safety chains
• Ram topwind swivel jack
• Recessed brake and tail lights
• Reflective tape
• Equipped for battery

• Tank made of 10 Ga. steel with baffle
• Superior round design
• Rochester fuel gauge
• Vented filler cap
• Particle and water filter

Running Gear

• 7,000 lb G.V.W.R. running gear
• Two 3,500 lb Dexter  Torflex® axles
• Forward self-adjusting electric brakes
• 15″ steel wheels
• Tires: 205-75R15 (or equivalent)
• Chrome hub caps
• Five (5) year limited warranty

Fuel Pump

In a world where time is money, the FR4210 saves you both. Thanks to its high flow rate of 20 GPM (76 LPM) and low 22 amp draw, you’ll spend less time at the pump and more time accomplishing the task at hand.

• 12 volt 20 GPM fuel pump
• 1/4 hp, 12 volt DC motor
• Built-in check valve, bypass valve and thermal expansion valve
• 1″ diameter, 12′ hose and 1″ manual nozzle
• Pump may be padlocked
• Corrosion-proof adjustable section pipe
• Explosion-proof permanent magnet motor
• Thermal overload protection
• 30-minute duty cycle/not for continuous operation
• Ball bearing construction, no lubrication required
• Machined carbon vanes
• 2″ threaded base for tank openings
• UL/cUL listed motor
• Rain proof

All of our products are blasted and powder coated making our products last a lifetime. The parts to be coated are positively grounded, so that the charged particles adhere to them until melted and fused into a solid coating in a curing oven. The result: a sleek, strong, high-quality finish.

Hose-Reel Option

Reelcraft® Hose Reel w/ 1″ Plumbing & 25′ Hose for 20 GPM Setup
