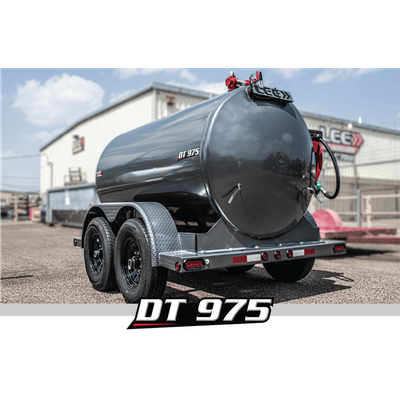

LeeAgra - Model DT 975 -Diesel Fuel Trailer
This transportable diesel fuel trailer is manufactured primarily for farm use. Ideal tongue weight makes towing a breeze. Not approved for highway use. Dished flanged ends represent a higher quality design for fuel tanks due to their enhanced structural integrity during transport.
LEE diesel fuel trailers are highly visible in your rearview mirror which increases safety while backing up, compared to generic square designs
Excellent resistance to deformation, bending, and impact. Its thickness ensures long-lasting durability, even under heavy use or harsh conditions, allowing tanks to maintain their structural integrity for years.
The heavy-duty trailer frame withstands the toughest conditions on any farm and dirt roads.
Heavy-duty fenders provide a sturdy service
platform and protect the tank and tow vehicle from debris during transport.
Standard suction pipes can break with the movement of fuel in the tank. Our custom suction pipes are the strongest on the market and will never need repair.
The rear bumper provides a sturdy platform for accessing the fuel nozzle.
Built-in ventilation to prevent pressure buildup, allowing for smooth fuel flow while reducing the risk of spillage or leaks.
Advanced filtration that protects your equipment by removing dirt, debris, and water contaminants.
Precisely measures fuel levels within the tank.
- Capacity: 1000 gallons
- Pump: 12 Volt, 20 GPM
- 4 placards included
- Dry weight: 2565 lb
Trailer
- 6″ channel frame
- Gusset plates for added strength
- Steel tread heavy-duty fenders
- Forged 2-5/16” coupler
- Safety chains
- Ram top wind swivel jack
- Recessed brake and tail lights
- Reflective tape
- Equipped for battery
- Tank made of 3/16″ plate steel
- Superior round design
- Rochester fuel gauge
- Vented filler cap
- Particle and water filter
- 12,000 lb G.V.W.R.
- Two 6000 lb Dexter Torflex® Axles
- Forward self-adjusting electric brakes (both axles) and breakaway switch
- 16″ steel wheels
- Tires: 235-85R16 (or equivalent)
- Chrome hub caps
- Five (5) year limited warranty
In a world where time is money, the FR4210 saves you both. Thanks to its high flow rate of 20 GPM (76 LPM) and low 22 amp draw, you’ll spend less time at the pump and more time accomplishing the task at hand.
- 12 volt 20 GPM fuel pump
- 1/4 hp, 12 volt DC motor
- Built-in check valve, bypass valve and thermal expansion valve
- 1″ diameter, 12′ hose and 1″ manual nozzle
- Pump may be padlocked
- Corrosion-proof adjustable section pipe
- Explosion-proof permanent magnet motor
- Thermal overload protection
- 30-minute duty cycle/not for continuous operation
- Ball bearing construction, no lubrication required
- Machined carbon vanes
- 2″ threaded base for tank openings
- UL/cUL listed motor
- Rain proof
All of our products are blasted and powder coated making our products last a lifetime. The parts to be coated are positively grounded, so that the charged particles adhere to them until melted and fused into a solid coating in a curing oven. The result: a sleek, strong, high-quality finish.
