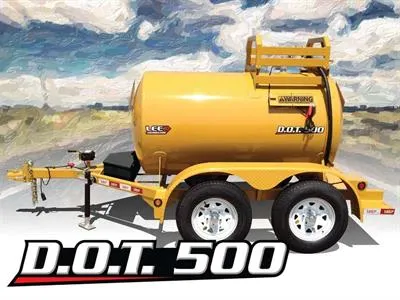

LeeAgra - Model D.O.T. 500 - Diesel Fuel Trailer
The radius of the dished ends is formed instead of welded which decreases the stress points. During starts and stops diesel fuel rolls up the ends instead of surging forward and back. This reduces stress on the tank, trailer and tow vehicle. Standard suction pipes can break with the movement of fuel in the tank. Our custom suction pipes are the strongest on the market and will never need repair. Low-profile, square fuel trailer designs cannot be seen through the rear-view mirror while backing up. Lee diesel fuel trailers are highly visible in your rear-view mirror which increases safety while backing. Heavy duty fenders protect the tires during transport and give a sturdy platform for servicing the fuel pump.
500 Gallons
Compatible with class 3 combustible materials.
Electric brakes on both axles with a breakaway switch.
A heavy duty roll cage protects the fuel pump and inlet valve in the event of a rollover.
- Capacity: 500 gallons
- Pump: 12 Volt, 20 GPM
- 4 placards included
- Dry weight: 1878 lb
Trailer
- Trailer made of rectangular tubing
- Gusset plates for added strength
- Rear bumper
- Steel tread heavy-duty fenders
- Forged 2-5/16” coupler
- Safety chains
- 5,000 lb Ram top wind swivel jack
- Recessed brake and tail lights
- Reflective tape
- Equipped for battery
- Tank made of 10 Ga. steel with baffle
- Superior round design
- Rochester fuel gauge
- Vented filler cap
- Particle and water filter
- Placard holders
- Placards are displayed on all four sides of tank
Running Gear
- 7,000 lb G.V.W.R.
- Two 3,500 lb Dexter Torflex® Axles
- Forward self-adjusting electric brakes (both axles) and breakaway switch
- 15″ steel wheels
- Tires: 205-75R15 (or equivalent)
- Chrome hub caps
- Five (5) year limited warranty
In a world where time is money, the FR4210 saves you both. Thanks to its high flow rate of 20 GPM (76 LPM) and low 22 amp draw, you’ll spend less time at the pump and more time accomplishing the task at hand.
- 12 volt 20 GPM fuel pump
- 1/4 hp, 12 volt DC motor
- Built-in check valve, bypass valve and thermal expansion valve
- 1″ diameter, 12′ hose and 1″ manual nozzle
- Pump may be padlocked
- Corrosion-proof adjustable section pipe
- Explosion-proof permanent magnet motor
- Thermal overload protection
- 30-minute duty cycle/not for continuous operation
- Ball bearing construction, no lubrication required
- Machined carbon vanes
- 2″ threaded base for tank openings
- UL/cUL listed motor
- Rain proof
All of our products are blasted and powder coated making our products last a lifetime. The parts to be coated are positively grounded, so that the charged particles adhere to them until melted and fused into a solid coating in a curing oven. The result: a sleek, strong, high-quality finish.
Hose-Reel OptionReelcraft® Hose Reel w/ 1″ Plumbing & 25′ Hose for 20 GPM Setup
