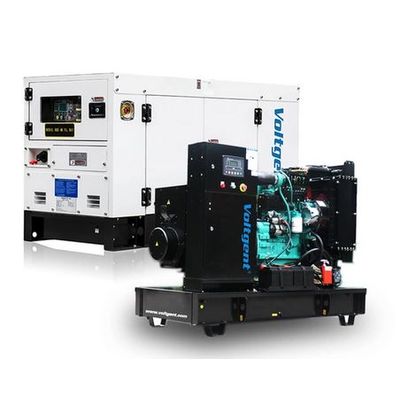

Cummins - Model VC33-5 -Diesel Generator

GENERATOR SET SPECIFICATIONS

• Standby Power (kVA): 33
• Standby Power (kW): 26
• Prime Power (kVA): 30
• Prime Power (kW): 24
• Power Factor (Cos Phi): 0.8
• Diesel Engine Model: 4B3.9G12
• Frequency (Hz): 50
• Rated Speed (rpm): 1500
• Phase: 3
• Standrad Voltage (V): 400/230
• Available Voltage (V): 380/220   415/240

ENGINE SPECIFICATIONS

• Engine model: 4B3.9G12
• Engine type: 4 stroke diesel
• Governor type: Electronic
• Injection type: Direct
• Aspiration type: Naturally aspirated
• Number of cylinders and arrangement: 4-L
• Bore and stroke (mm*mm): 102*120
• Displacement (L): 3.9
• Cooling system: water-cooled
• Fuel consumption @75% load (L/H): 6.1

ALTERNATOR SPECIFICATIONS

• Number of phase : 3
• Poles: 4
• Winding Connections (standard): Star-series
• Insulation: H class
• Enclosure (accordingly to IEC-34-5): IP23
• Excitation system: Self-excited, brushless
• Voltage regulator: AVR
• No. of bearings: Single bearing
• Coupling system: Flexibale disc
• Coating type: Standard (Vacuum impregnation)
