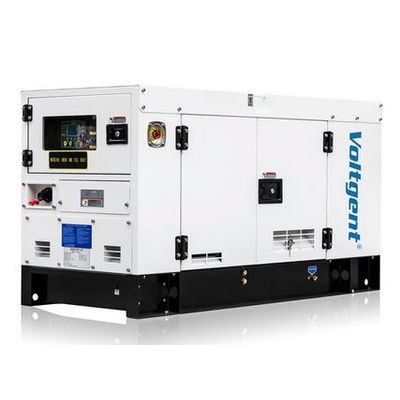

Voltgent - Model VSC22-5 -Diesel Generator
High Competitive Quality/Price Ratio. Compact Dimension. Double-stack loading to maximum the loading space. Coupled with leading brand engine in China.
Most popular related searches
generator set
standby power
voltage regulation
voltage regulating
voltage regulator
diesel generator
power factor
diesel engine
GENERATOR SET SPECIFICATIONS
- Standby Power (kVA): 22
- Standby Power (kW): 18
- Prime Power (kVA): 20
- Prime Power (kW): 16
- Power Factor (Cos Phi): 0.8
- Diesel Engine Model: 4Z2.7-G11
- Frequency (Hz): 50
- Rated Speed (rpm): 1500
- Phase: 3
- Standrad Voltage (V): 400/230
- Available Voltage (V): 380/220 415/240
GENERATOR SET DIMENSIONS
- Length - Maximum: 1700
- Width - Maximum: 740
- Height - Maximum: 960
ENGINE SPECIFICATIONS
- Engine model: 4Z2.7-G11
- Engine type: 4 stroke diesel
- Governor type: Electronic
- Injection type: Direct
- Aspiration type: Naturally aspirated
- Number of cylinders and arrangement: 4-L
- Bore and stroke (mm*mm): 90*105
- Displacement (L): 2.7
- Cooling system: water-cooled
- Fuel consumption @75% load (L/H): 3.6
ALTERNATOR SPECIFICATIONS
- Number of phase: 3
- Poles: 4
- Winding Connections (standard): Star-series
- Insulation: H class
- Enclosure (accordingly to IEC-34-5): IP23
- Excitation system: Self-excited, brushless
- Voltage regulator: AVR
- No. of bearings: Single bearing
- Coupling system: Flexibale disc
- Coating type: Standard (Vacuum impregnation)
